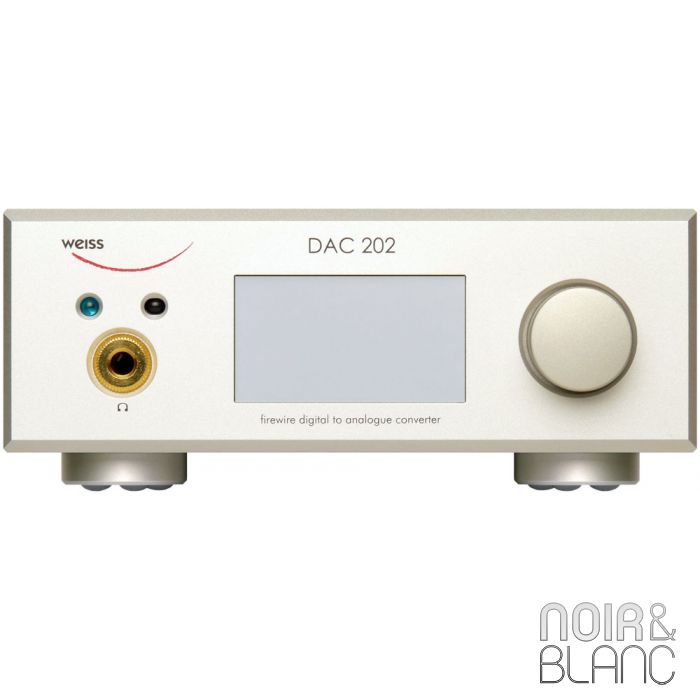

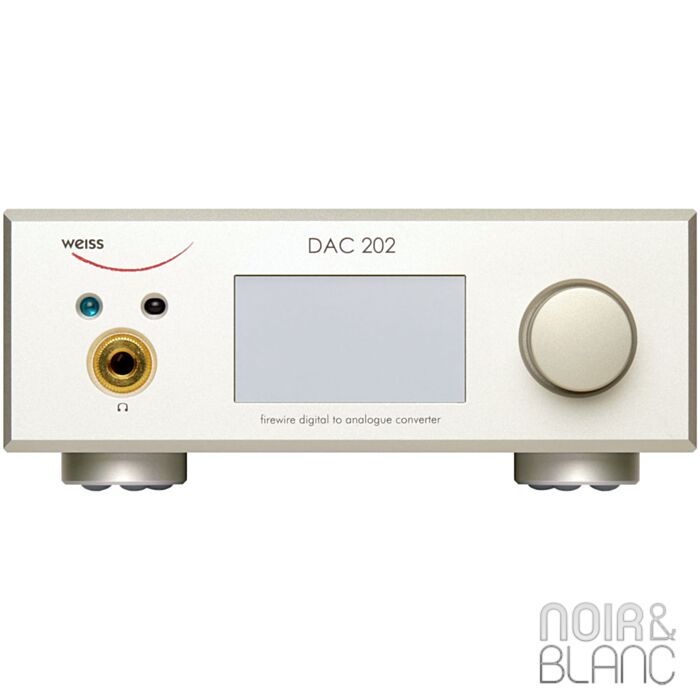

Weiss DAC 202

•Available in silver or black finish
•Digital Inputs: AES/EBU or S/PDIF on 1 XLR, 1 RCA, 1 Toslink, Firewire
•Digital Outputs: AES/EBU on 1 XLR, 1 RCA, Firewire
•Main Analog Output: 2 stereo analog outputs, one on XLR one on RCA
•Headphone output on 1/4" Jack
•Level control main output: 4 coarse settings via relays (analog domain), fine setting via rotary encoder (digital domain). Level control can be defeated for the main output.
•Level control headphone output:  4 coarse settings via relays (analog domain, independent from the settings in the main output), fine setting via rotary encoder (digital domain).
•Wordsync input on BNC connector
•Wordsync output on BNC connector
Frontpanel controls:

•LCD display for display of sampling rate, input source, audio level, absolute phase, upsampling filter type, various menu items
•Rotary encoder with push switch
•IR receiver
•Standby LED
•Headphone Jack socket
Special features:

•Transparency check (allows to check the bit transparency of a playback chain)
•Setting of the coarse output levels (analog domain), separate for the main output and the headphone output
•Dual / single wire selection for 176.4 / 192 kHz sampling rate
•"Insert Mode" allows to loop in a external digital audio device (e.g. a equalizer) via the AES/EBU I/O on the XLR connectors
•Sampling rate setting on the WSYNC I/O connectors in dual wire mode
•Display brightness
IR Remote control switches:

•power on/off
•volume up
•volume down
•input sources (4 switches for Firewire, XLR, RCA. Toslink)
•DAC upsampling filter type
•mute
•absolute phase

Sampling rates: 44.1 up to 192 khz / 24 Bits
