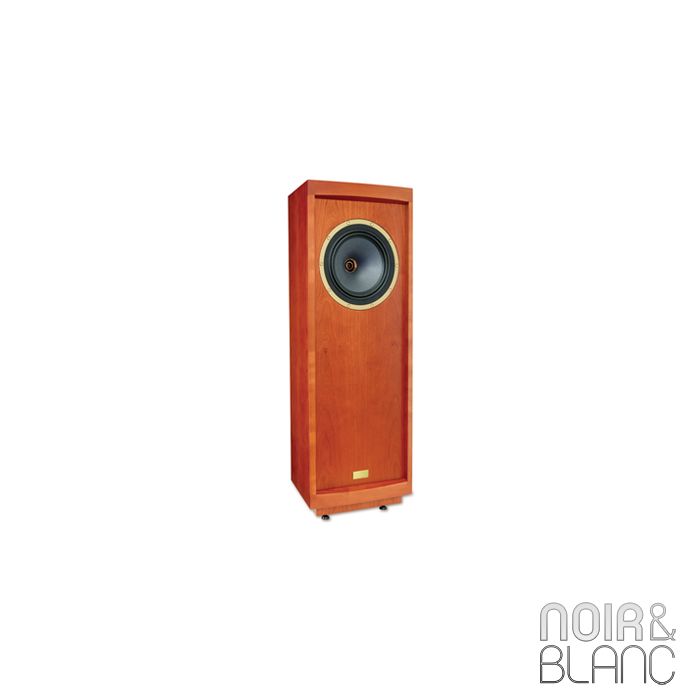

Tannoy Glenair 10
Ce produit n'est plus disponible
Une question avant de finaliser votre commande ?
Notre équipe d'experts vous réponds par email ou au +32 538 44 51 (mar-sam, 10h-12h30 et 14h-18h30)
Fiche technique
Informations techniques complémentaires
PERFORMANCE
Recommended amplifier power 50 - 200 Watts
Continuous power handling 120 Watts RMS
Frequency response 38Hz - 25kHz -6dB
Sensitivity 91dB (2.83 Volts @ 1 metre)
Nominal impedance 8 Ohms
DRIVE UNITS
Dual Concentric™ high frequency 25mm (1.00”) aluminium alloy dome with Tulip WaveGuide™
Dual Concentric™ low frequency 250mm (10.00”) treated paper pulp cone with HE twin roll fabric surround. 52mm (2.00”) edge wound voice coil
Dispersion 90 degrees conical
CROSSOVER
Frequency 2.1kHz
Type Bi-wired, hard wired passive, low pass 2nd order LF, 1st order HF
CONSTRUCTION
Enclosure type Twin rear ported
Volume 62L (2.2 cu. ft.)
Dimensions 1000 x 360 x 347.5mm
(39.75 x 14.30 x 13.80”)
Weight 28kg (61.7 lbs)
Finish Cherry veneer with solid cherry trim detail
L'avis de Noir & Blanc
Utilising the the same design principles and proven acoustic benefits of a trapezoidal cabinet design of the Glenair, the Glenair 10 is a more compact speaker equipped with a 250mm (10.00") Dual concentric™ drive unit.
Plywood manufactured from birch grown in slow-growing cold regions of the world and selected for its denser quality is used for the main structure of the speaker cabinet. The combination of heavily damped material, comprehensive internal bracing and non-parallel side panels alleviate the problems associated with standing waves, ensuring that the loudspeaker is free from unwanted resonance.
Externally the cabinet is finely crafted with American Cherry veneer and solid wood mouldings hand finished and polished to an unsurpassed standard. No unsightly retaining lugs spoil the clean lines of the speaker’s front panel when the curved, acoustically transparent grille is removed; this thanks to the cleverly designed magnetised fixing method within the baffle structure.
