TAD-C600
Ce produit n'est plus disponible
Une question avant de finaliser votre commande ?
Notre équipe d'experts vous réponds par email ou au +32 538 44 51 (mar-sam, 10h-12h30 et 14h-18h30)
Fiche technique
Informations techniques complémentaires
Major Functions
• Mute
• Display Off
• Mode setting: fine volume adjustment, volume display mode switching, L/R balance adjustment, input level setting, auto power down setting
Precision-processed machined aluminum chassis
100000µf electrolytic capacitor
Large capacity power supply
Ladder-resistance switching type electronic volume control circuit
Fully balanced output circuit
Based on the TAD concept that “a signal route exemplified by the
absolute minimum of functions results in the most accurate and high
quality sound,” the C600 has an extremely simple circuit configuration.
Following input signal volume adjustment by the electronic volume
control, the circuit configuration utilizes only one voltage amplification
stage. Equipping each of the two line outputs with their own dedicated
amplifier circuits eliminates the output circuit signal branching as well
as interference from connected equipment that can cause sound
quality deterioration. In order to transmit music signals as simply and
accurately as possible, the monitor switch has been eliminated due to
its potential effect on sound quality. Furthermore, the audio
pass-through function sets the gain to unity, without introducing
additional switching circuitry, to maintain maximum signal purity.
Input terminals: balanced input × 3, unbalanced input × 3
Output terminals: line: balanced output × 2, unbalanced output × 2; recording: balanced output × 1, unbalanced output × 1
Rated output voltage: balanced output 1.5 V, unbalanced output 0.75 V
Maximum output voltage: balanced output 20 Vrms, unbalanced output 10 Vrms
Rated distortion: 0.0015% (balanced output, 1.6V, 1kHz)
SN ratio: 120 dB (IHF-A, short circuit)
Frequency response: 10 Hz ~ 100 kHz, (-1 dB)
Gain: 12 dB
Max. allowable input voltage (Vol. -40 dB): 20 V (balanced), 10 V (unbalanced)
Power supply voltage: AC 220 V to 240 V, 50 Hz /60 Hz (Europe)
Power consumption: 52 W
Standby time power consumption: 0.5 W or less
Exterior dimensions: main amplifier: 450 mm (W) × 150 mm (H) × 440 mm (D), Power supply: 220 mm (W) × 185 mm (H) × 430 mm (D)
Weight: main amplifier: 29 kg; power supply unit: 15 kg
L'avis de Noir & Blanc

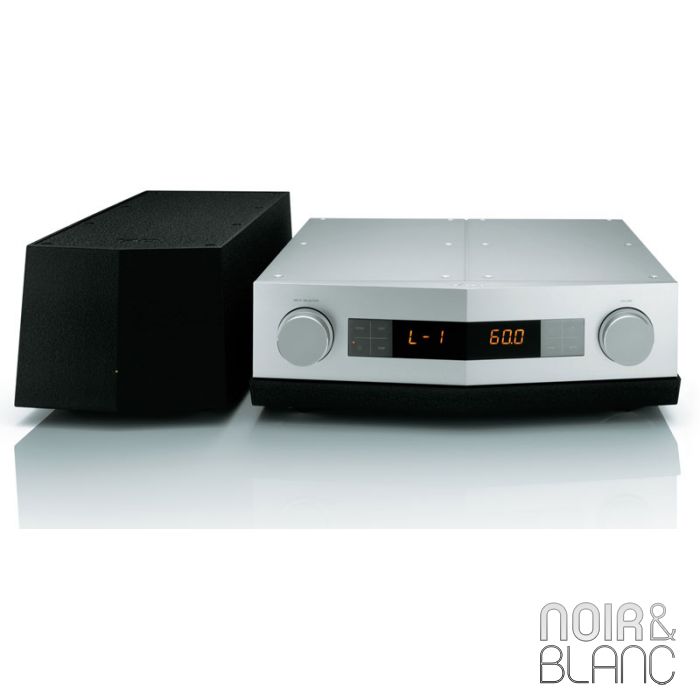

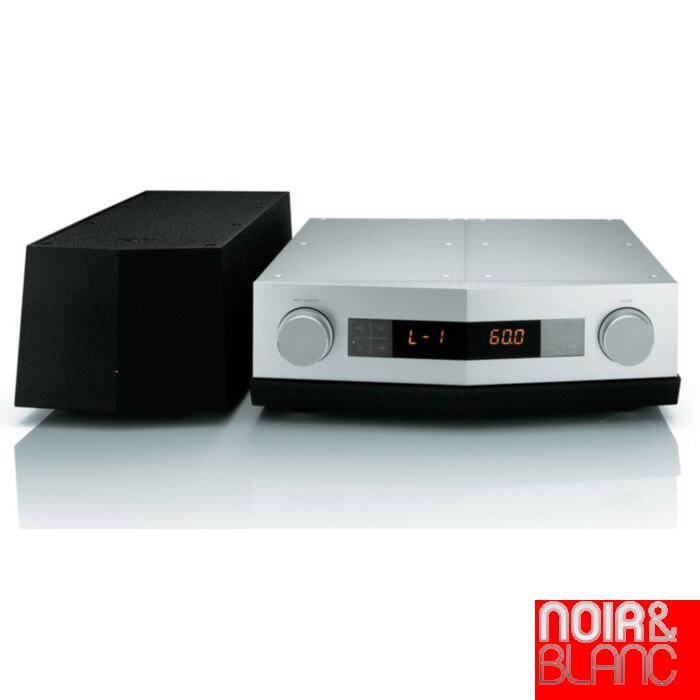

Le TAD C600 est le préamplificateur de référence à alimentation séparée de la marque.
C'est une véritable oeuvre d'art aussi belle à regarder qu'à écouter. La finition est tout bonnement à couper le souffle.
Il dispose d'une alimentation séparéé consequante et de qualité.
C'est le fleuron de la gamme TAD4 faisant partie de la série 600.
Il dispose d'une connectivité très riche et est également tourné vers le futur avec des entrées numériques.
