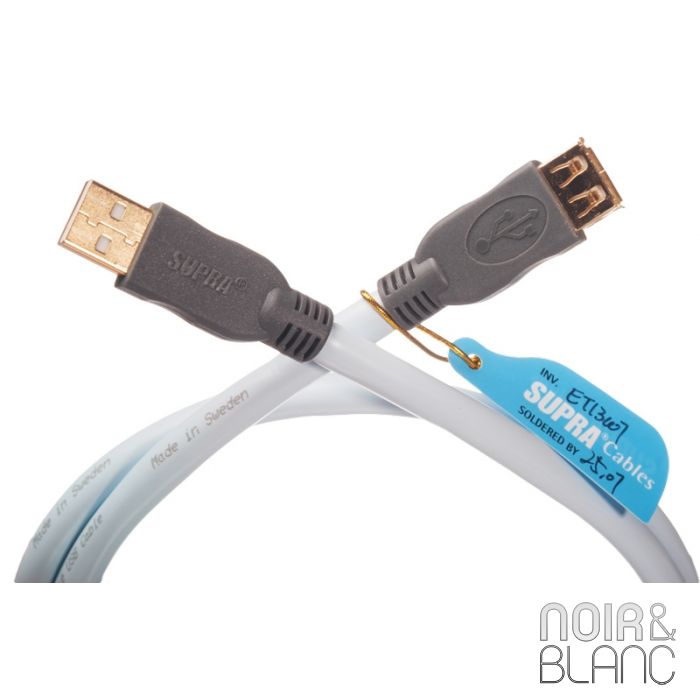

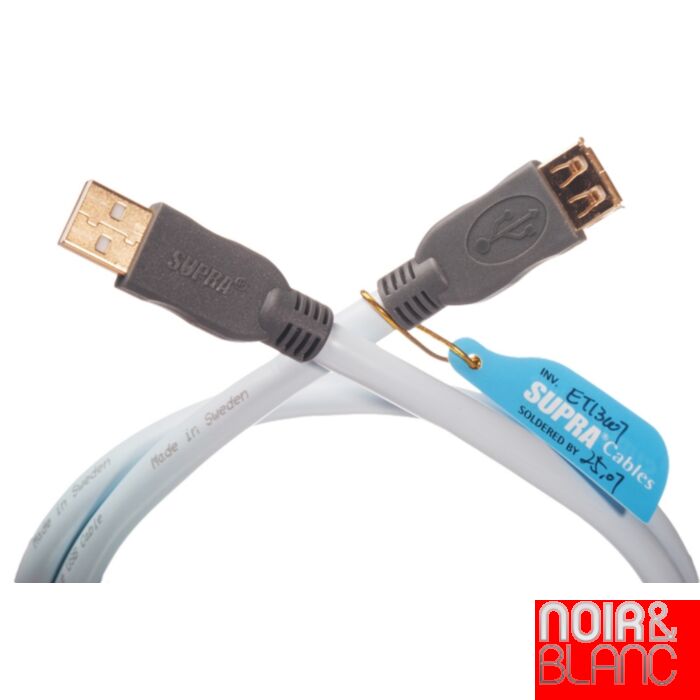

Supra Cables USB 2.0 Type AA
Ce produit n'est plus disponible
Une question avant de finaliser votre commande ?
Notre équipe d'experts vous réponds par email ou au +32 538 44 51 (mar-sam, 10h-12h30 et 14h-18h30)
Fiche technique
Informations techniques complémentaires
Mechanical Specifications
| Standard | USB 2.0 Hi-Speed Extension | |
| Connectors | USB A male ► USB A female | |
| Signal Direction | Bi-directional | |
| Application Examples | Computer peripherals, DAC's | |
| Solder Tin | Almit SR-34 Super | |
| Cable strain relief | Molded connector housing |
Electrical properties
| Number of pairs | 2 | pieces |
| Lead area | 0.24 / 23 | mm2 / AWG |
| Number of strands | 19 | pieces |
| Strand dimension | Ø 0.127 | mm |
| Lead material | Tin plated oxygen-free 5N copper | |
| Insulation | Low capacitance PE | |
| Shielding | Aluminized PET foil | |
| Jacket | Heat and age resistant PVC | |
| Flame retardant | No | |
| External dimension | Ø 7.5 | mm |
Electrical performance
| Data transfer rate | 480 | Mbit / s |
| Resistance | 72 | Ohm / km |
| Capacitance | 52 | pF / m |
| Impedance | 90 | Ohm |
| Velocity factor | 0.66x | C (speed of light) |
L'avis de Noir & Blanc
High Performance, High Speed, type A-B
A flexible cable with dual screens for the best RF pick-up protection. One twisted pair for data and one twisted pair for power, individual screens for minimal interference. Low capacitance and efficient noise rejection maintain signal integrity in the long run interconnects. PE-insulated wires with correct 90 Ohms impedance design.
24K gold plated and shielded connectors. The connectors are molded to withstand tough applications and long term use. Handles high speed 1200 Mbps data transfer up to 15m.
While USB 2.0 and 3.0 are compatible, USB 3.0 is a dual-link system not used for USB Audio.
