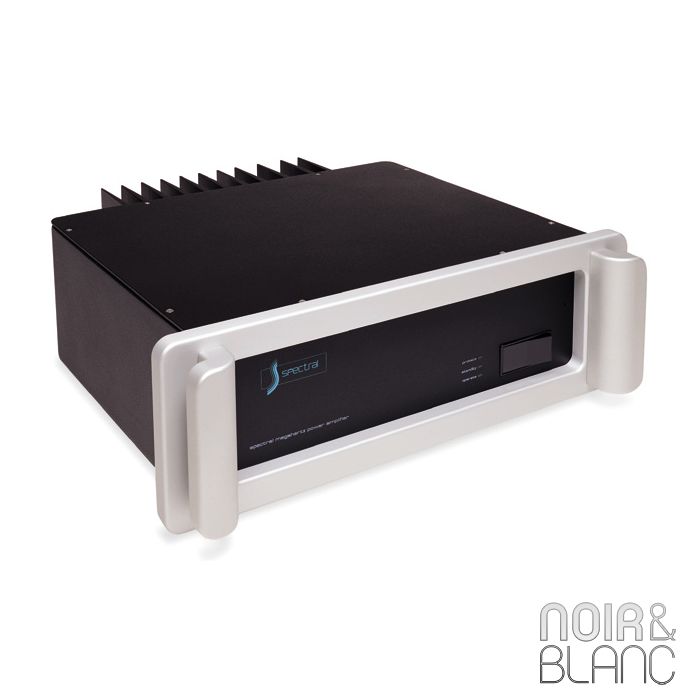

Spectral Audio DMA-360S Series 2

Power Output (continuous): @ 8 ohms - 300 Watts RMS @ 4 ohms - 533 Watts RMS @ 2 ohms - 680 Watts RMS Output Compliment: 90 Amps peak Frequency Response: +-0.1 dB, DC - 150 KHz +-1 dB, DC - 1 MHz +-3 dB, DC - 1.8 MHz Distortion Static: less than 0.015% from DC to 100 KHz, typically 0.009% @ 300 WRMS/8 ohms Dynamic: 8 Tone Cluster Test 20 KHz @ 500 Hz separation 0.01% @ 8 ohms 0.015% @ 4 ohms Speed: Risetime: less than 300 nanoseconds Settling: 1.5 microseconds to -40 dB Slew Rate: 600 volts/microsecond Noise: Signal to Noise: 97 dB nweighted, 107 dB ASA A Crosstalk: 98 dB @ full power 8 ohms Input: Impedance: 10k ohms Sensitivity: 1.5 volts / nominal output Power Supply: Line Voltage: 100 volts, 120 volts, 240 volts (internal wiring) AC Voltage Range: +-10% Maximum Consumption: 2000 Watts Quiescent Consumption: 250 Watts Operating Temperature: 0 deg. to +50 deg. Cesius range, 32 deg. to +122 deg. Fahrenheit Protection Features: DC Protection Servo: .5 volt range Current Limit Onset: 90 Amps Thermal Threshold: Protects at 85 deg. Censius, 185 deg. Fahrenheit AC Main Fuses: 120v 5A or 220v 2.5A slo blo Size and Weight: Dimensions: 20" (50.8 cm) W, 7.23" (18.4 cm) H, 19.6" (49.9 cm) D, Weight: 67 lbs, 30.4 KG Net
