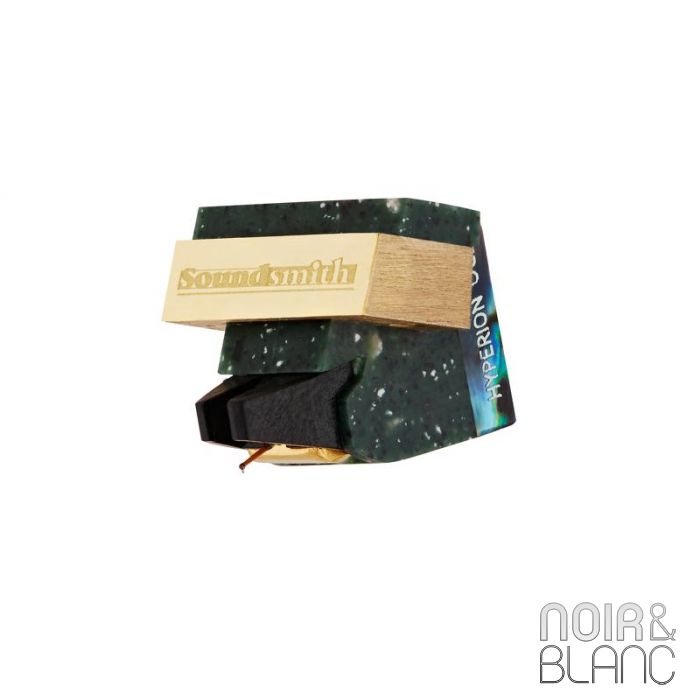

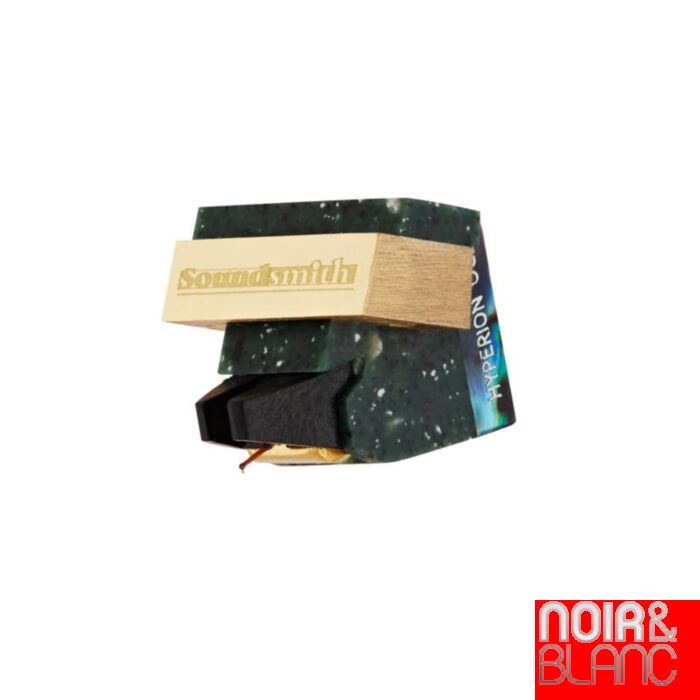

Soundsmith Hyperion
Ce produit n'est plus disponible
Une question avant de finaliser votre commande ?
Notre équipe d'experts vous réponds par email ou au +32 2 538 44 51 (mar-sam, 10h-12h30 et 14h-18h30)
Fiche technique
Informations techniques complémentaires
Cartridge Type
Stylus Type
Contact Line O.C. Contact Line
Output
Low
Output Voltage
0.4 mV
Available As Dual Coil Mono
Yes
Additional Specifications
Stylus: Contact Line Nude, 0.100mm SQ
Radius of curvature
Selected Diamond shapes: CL or Optimized (OCL)
Cantilever: Hand formed/treated selected Cactus "Spine"
Recommended tracking force: 1.8 to 2.2 grams
Effective tip mass: 0.30 mg
Compliance: 10 μm/mN (low compliance) (LT) | 12 μm/mN vertical | 7 μm/mN horizontal
Frequency response: 20-20,000 Hz ± 1.0 dB
Channel separation (stereo only): 1000 Hz >36 dB (LT: > 34dB), 50-15,000 >25 dB
Channel difference: <0.5 dB (Stereo) <1.0 dB (Mono)
Output Voltage: ≥0.4 mV
DC Resistance (DCR): 10-11 Ω each channel
Coil: 2.75 mH each channel
Suggested Preamp Gain: 58-64 dB
Soundsmith Recommends: MCP2 Variable Loading Preamp
Cartridge weight: 10.25 grams
Stylus to Mounting Hole Offset: ≈ 10mm (0.4")
Loading: ≥ 470 Ω
