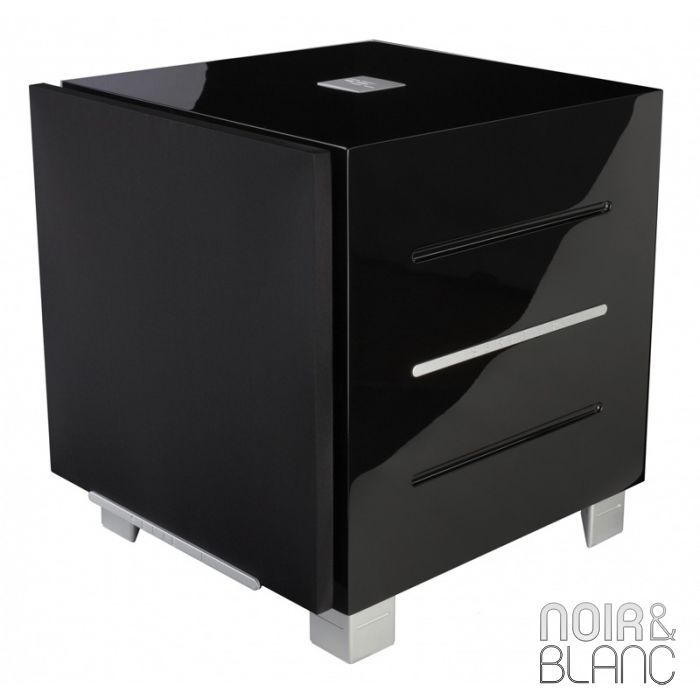

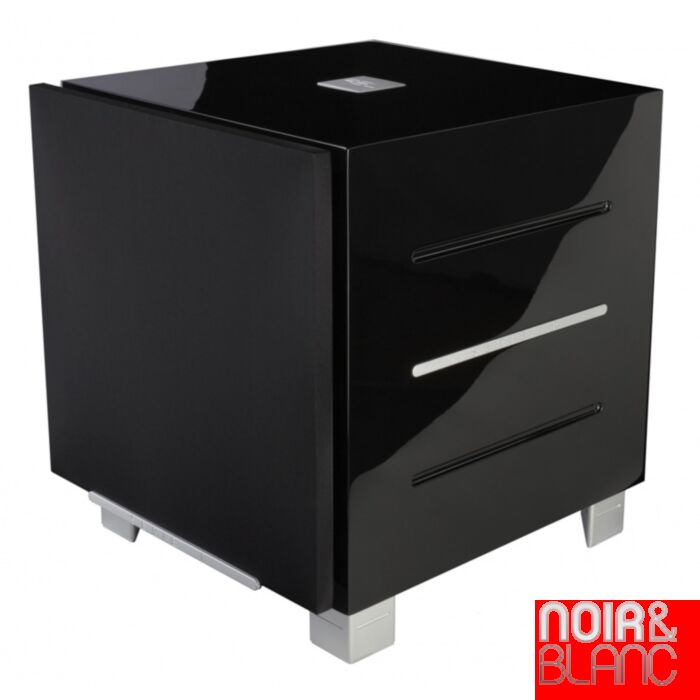

REL R328
Ce produit n'est plus disponible
Une question avant de finaliser votre commande ?
Notre équipe d'experts vous réponds par email ou au +32 538 44 51 (mar-sam, 10h-12h30 et 14h-18h30)
Fiche technique
Informations techniques complémentaires
R-328 specifications
Type: Passive Radiator, front-firing active woofer,
down-firing passive radiator
Active Drive Unit: 10 in., 250mm long-throw, steel chassis
Passive Radiator: 12 in., 300mm
Lower Frequency Response in Room: 22Hz at -6 dB
Input Connectors: Hi Level Neutrik Speakon, Lo Level single phono, LFE phono
Gain Control Range: 80 dB
Power Output: 350 watts (RMS)
Phase Switch: Yes, 0 or 180 degrees
Amplifier Type: Class D
Protection System
Fully Electronic with SET-SAFE: Yes
D.C. Fault: Yes
Output Short: Yes
Mains Input Voltage: 220-240 volts, 110-120 volts for certain markets
Fuses: 4 Amp semi delay 230 volts operation
8 Amp semi delay 115 volts operation
Dimensions (WHD), Including Feet: 13.5 x 15.1 x 15.2 in., (343 x 384 x 385 mm)
Net Weight: 45 lbs. (20.4 kg)
Finish: Gloss Piano Black Lacquer
L'avis de Noir & Blanc
Serie R-328 is a powerful, high output, ultra fast device capable of underpinning virtually any main speaker. R-328 combines a heavy die cast frame, air-dried hand thrown paper cone, 4-layer voice coil and long travel suspension with a unique REL carbon-carbon superlight passive. This results in the driven surface area of a 16” driver. Driven by a powerful 500W next-generation Class D amplifier that is limited to 350 watts for maximum driver reliability, R-328 is the sweet spot in the Serie R lineup.
