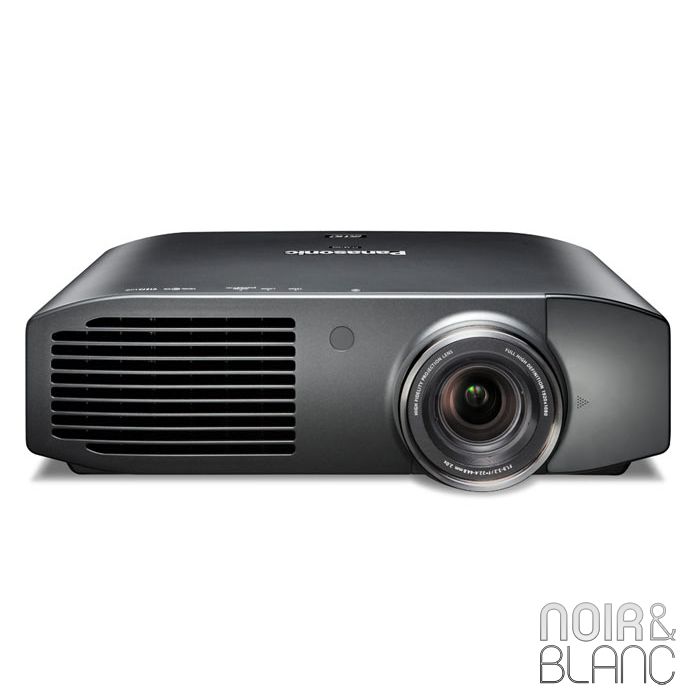

Panasonic PT-AT6000E

Model PT-AE8000/AT6000*1

Power supply 100–240 V AC, 50/60 Hz

Power consumption 310 W (0.08 W in standby mode)

LCD*2 panel Panel size 18.7 mm (0.74 in) diagonal (16:9 aspect ratio)

Display method Transparent LCD panel (× 3, R/G/B)

Drive method Active matrix

Pixels 2,073,600 (1,920 × 1,080) × 3, total of 6,220,800 pixels

Lamp*3 220 W UHM lamp (The lamp replacement cycle is up to 4,000 hours

(lamp power: NORMAL) / 5,000 hours (lamp power: ECO)*4)

Lens Powered zoom (2.0x) / focus lenses (1.35:1–2.70:1), F 1.9–3.2, f 22.4–44.8 mm

Projection size (diagonal) 2D projection 1.02–7.62 m (40–300 inches)

3D projection 1.02–5.08 m (40–200 inches)

Throw distance 2D projection 1.16–18.08 m (3 ft 10 in to 59 ft 4 in)

3D projection 1.16–12.0 m (3 ft 10 in to 39 ft 4 in)

Colors Full color (1,073,741,824 colors)

Brightness*5 2,400 lm*6

Center-to-corner uniformity ratio*5 85%

Contrast ratio*5 500,000:1*7 (full on/full off)

Resolution 1,920 × 1,080 pixels

Scanning frequency HDMI 480p, 576p, 720/60p, 720/50p, 1080/60p, 1080/50p, 1080/60i, 1080/50i, 1080/24p

RGB fH: 15 kHz–74 kHz, fV: 24 Hz–85 Hz,

dot clock: 154 MHz or lower

YPBPR (YCBCR) 525i (480i): fH 15.7 kHz; fV 59.9 Hz,

525p (480p): fH 31.5 kHz; fV 59.9 Hz,

750 (720)/60p: fH 45.0 kHz; fV 60.0 Hz,

1125 (1080)/60i: fH 33.8 kHz; fV 60.0 Hz,

1125 (1080)/24p: fH 27.0 kHz; fV 24.0 Hz,

1125 (1080)/50p: fH 56.3 kHz; fV 50.0 Hz 625i (576i): fH 15.6 kHz; fV 50.0 Hz,

625p (576p): fH 31.3 kHz; fV 50.0 Hz,

750 (720)/50p: fH 37.5 kHz; fV 50.0 Hz,

1125 (1080)/50i: fH 28.1 kHz; fV 50.0 Hz,

1125 (1080)/60p: fH 67.5 kHz; fV 60.0 Hz,

Video/S-Video fH : 15.7 kHz, fV: 59.9 Hz [NTSC/NTSC4.43/PAL-M/PAL60],

fH : 15.6 kHz, fV: 50.0 Hz [PAL/PAL-N/SECAM]

Optical axis shift*8 Vertical: ±100%, horizontal: ±26%

Keystone correction range Vertical: approx. ±30°

Installation Ceiling/desk, front/rear (menu selection)

Terminals HDMI IN HDMI connector × 3, HDMI (Deep Color, x.v.Color™,*9 CEC*10),

HDCP compliant, supports HDAVI Control Version 5

COMPUTER (RGB) IN D-sub HD 15-pin (female) × 1 (RGB/YPBPR/YCBCR × 1)

COMPONENT IN RCA pin × 3 (YPBPR/YCBCR)

TRIGGER IN / TRIGGER OUT /

3D SHUTTER OUT M3 × 2 (operate as 3D IR transmitter connectors)

(input/output/3D shutter output selectable using on-screen menu)

VIDEO IN RCA pin × 1

S-VIDEO IN Mini DIN 4-pin × 1

SERIAL IN D-sub 9-pin × 1 for external control (RS-232C compliant)

Power cord length 3.0 m (9 ft 10 in)

Cabinet materials Molded plastic (PC+ABS)

Dimensions (W × H × D) 470 × 151 × 364*11 mm (18-1/2 × 5-15/16 × 14-11/32*11 inches)

Weight*12 Approx. 8.7 kg (19.2 lbs)

Operation noise*5 22 dB (lamp power: ECO)

Operating temperature 0°C–40°C (32°F–104°F)*13

Operating humidity 20%–80% (no condensation)

Remote control unit Power supply 3 V DC (AA/R6 type battery × 2)

Operation range*14 Approx. 7 m (23 ft) when operated from directly in front of the signal receptor

Dimensions

(W × H × D) 48 × 138 × 28.3 mm

(1-7/8˝ × 5-7/16˝ × 1-1/8˝)

Weight Approx. 125 g (4.4 oz) (including batteries)

Supplied accessories Power cord (× 1) (× 2 for PT-AE7000EA)

Wireless remote control unit (× 1)

Batteries for remote control (AA/R6 type × 2)

Lens cover (× 1)

Optional accessories Replacement

lamp unit ET-LAA410

Ceiling mount bracket ET-PKA110H (for high ceilings)

ET-PKA110S (for low ceilings)

3D IR transmitter ET-TRM110

3D Eyewear TY-EW3D3M*15
