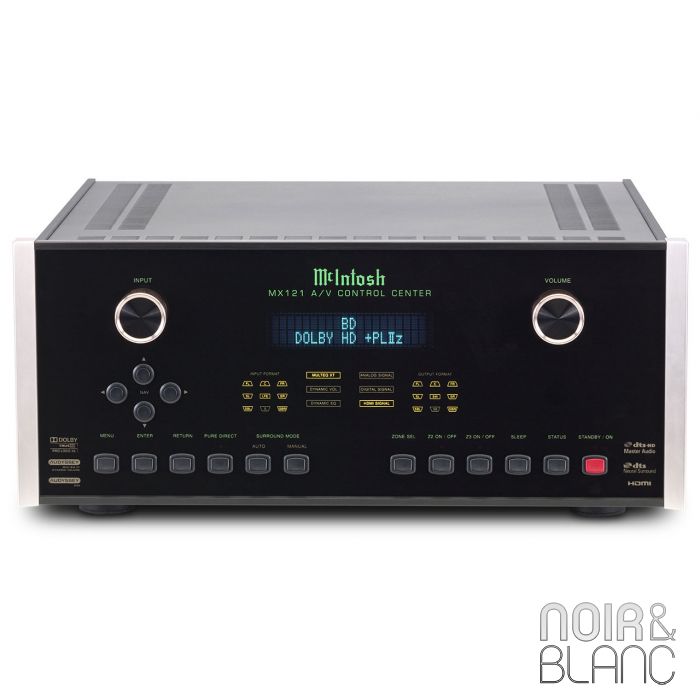

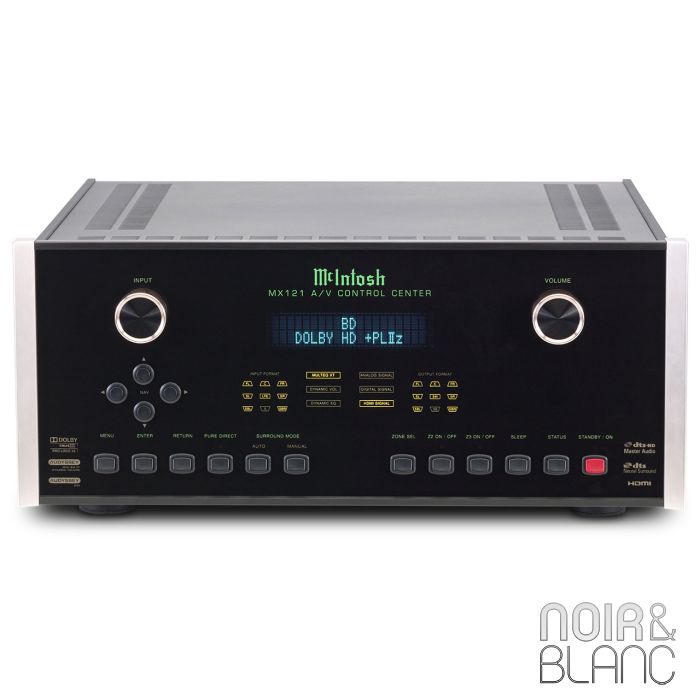

Mcintosh MX121
Ce produit n'est plus disponible
Une question avant de finaliser votre commande ?
Notre équipe d'experts vous réponds par email ou au +32 538 44 51 (mar-sam, 10h-12h30 et 14h-18h30)
Fiche technique
Informations techniques complémentaires
INPUTS BALANCED
1 set-Stereo
OUTPUTS BALANCED
7.1 + Second Subwoofer, or Height or Width
INPUTS UNBALANCED
7 Stereo + Moving Magnet Phono, 7.1 Input
OUTPUTS UNBALANCED
7.1 + SW, or H-2, or W-2, + VCR-2, + CDR-2
DIGITAL INPUTS
3-optical, 2-coax
DIGITAL OUTPUTS
1-optical
HDMI INPUTS
6 - with 3D video pass-through, ARC, CEC, Deep Color, x.v.Color, Auto Lip Sync, Advanced HD audio
HDMI OUTPUTS
One - Zone A, with or without ARC, 3D Video Pass-Through, CEC, Deep Color, x.v.Color, Auto Lip-sync
COMPONENT INPUTS
4
COMPONENT OUTPUTS
2
COMPOSITE INPUTS
5
COMPOSITE OUTPUTS
3
S-VIDEO INPUTS
0
S-VIDEO OUTPUTS
0
ADDITIONAL ZONE OUTPUTS
Two Stereo: Zone 2- Analog audio/video, Zone 3-Analog audio
MAX # OF AUDIO CHANNELS IN ZONE A
8
ADVANCED CONNECTIONS
Ethernet Web interface, Update, IP-based control + Web Data Streaming
PROCESSING
ULTRA LOW DISTORTION (DSP BYPASS)
0.005%
DOLBY PROCESSING
True HD/Digital Plus&EX/Pro Logic IIz, IIx
DTS PROCESSING
HD Master & High Res. Audio/ES/96/24, Discrete & Matrix6.1/Neo:6/Express/Neural
PURE STEREO DSP BYPASS MODE
Yes
VIDEO SCALING
Yes, up to 1080P HDMI
CONTROL
THIRD PARTY CONTROL
RS232, Web IP, Serial Data input, IR input port
TONE CONTROLS
Nine Band Equalizer, Bass and Treble
OSD OVERLAY ON HDMI OUTPUT
Yes
INPUT-OUTPUT FORMAT INDICATORS
9 in and 9 out
CONTROL OF MCINTOSH SOURCES
Yes, by handheld MX121 remote, 1 Data Out, 2 Power Control Trigger jacks
GENERAL SPECIFICATIONS
CHANNEL FORMATS
Stereo, 5.1, 7.1, Two Mono Subwoofers
DSP ROOM CORRECTION
Audyssey MultEQ XT, Dynamic EQ / Dynamic Volume, DSX
MICROPHONE AND STAND INCLUDED
Yes
NETWORK FEATURES
DLNA 1.5 Certified, Pandora, Internet Radio, Flickr
UNIQUE X-OVER FREQUENCY, EACH SPEAKER
Yes
SPECIAL FEATURES
Rear Panel USB-Apple Dock, HDMI in standby, Apple AirPlay
APPLE COMPATIBILITY
COMPATIBLE WITH THE FOLLOWING DEVICES WITH THE LATEST APPLE OS INSTALLED.
IPHONE
iPhone 4S
iPhone 4
iPhone 3GS
iPhone 3G
iPhone
IPOD
iPod touch (1st, 2nd, 3rd, and 4th generation)
iPod classic
iPod nano (3rd, 4th, 5th, and 6th generation)
WEIGHTS & DIMENSIONS
DIMENSIONS (W X H X D)
17-1/2" (44.45cm) x 7-5/8" (19.37cm) (including feet) x 19-1/2" (49.53cm) (including front panel, knobs, rear panel connections and USB drive)
WEIGHT
30 lbs (13.6 kg)
SHIPPING WEIGHT
54 lbs (24.5 kg)
L'avis de Noir & Blanc
MX121 is the control hub of the finest home theater systems. All current and legacy audio and video sources may be controlled, processed and operated through the MX121. An extensive and flexible feature set allow MX121 based systems to be configured to match the exact needs of the users. Home network ethernet communication is supported so you can stream audio and photos directly from your computer and the internet. The MX121 has the ability to automatically switch McIntosh Power Amplifiers On/Off via the Power Control/Trigger connections. Apple AirPlay® allows wireless streaming from the iTunes library on any device as well as a rear panel USB input for digital iPod®, iPad®, or iPhone® connection.
