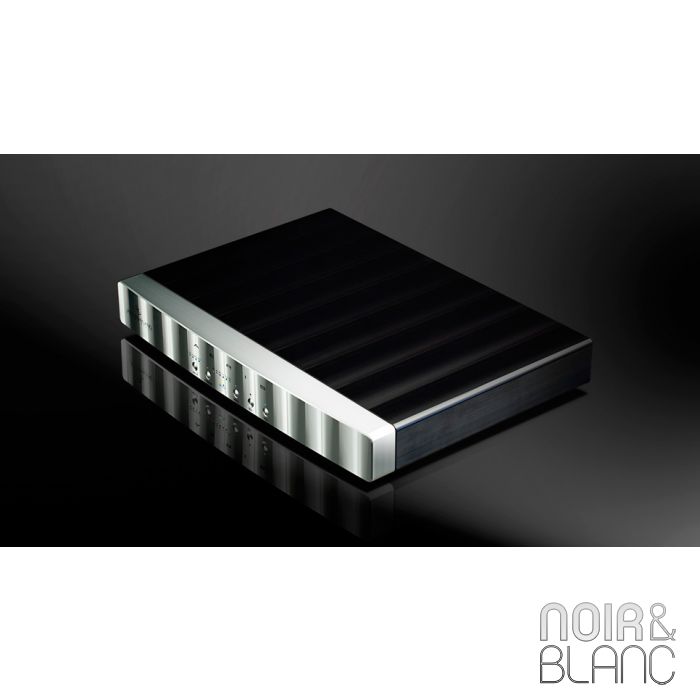

AERIS DAC SPECIFICATIONS
INPUTS
1x USB — accepts up to 24 bit PCM at 44.1, 48, 88.2, and 96 kHz sample rates
1x Toslink — accepts up to 24 bit PCM from 11 - 192 kHz sample rates
2x SPDIF — accepts up to 24 bit PCM from 11 - 192 kHz sample rates

OUTPUTS
1 pair balanced XLR and 1 pair unbalanced RCA
7 volts RMS max output level

VOLUME CONTROL
Dual-stage attenuation
70 dB range, plus 20 dB overdrive

SOFTWARE/DRIVERS
No special drivers necessary
USB interface is plug-n-play with all operating systems, including PC, Mac, or Linux.

CLOCKS (2X)
20 bit dynamic range Voltage Controlled Crystal Oscillators (VCXO)
44.1 kHz and 48 kHz < 1 picosecond RMS jitter

D/A CONVERTER
Differential output
352.8 kHz, 24 bit

DIGITAL FILTER
Finite Impulse Response (FIR) symetrical
Flat phase and group delay

THD+N
Analogue outputs
< 0.0006%

OUTPUT IMPEDANCE
RCA / XLR
120 ohms

DAC AND POWER SUPPLY WEIGHT
24.4 lb / 11kg

DIMENSIONS
2.4" x 15.5" x 11.6"
61mm x 394mm x 294mm
