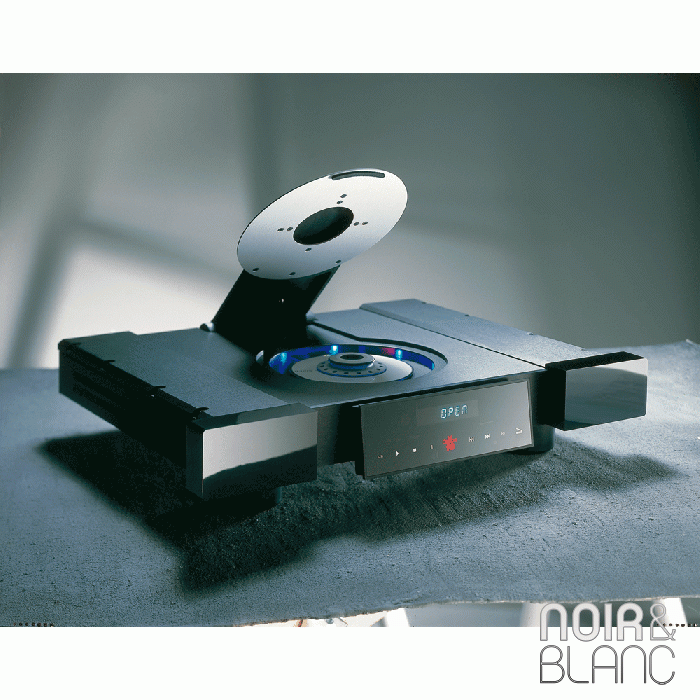

Gryphon Mikado Signature

Four Dual-Differential 32-bit/192 kHz AKM Digital-to-Analogue Converters with separate regulated power supplies
 Upsampling to 32-bit/192 kHz for enhanced sonic performance
 Gentle digital filter roll-off for ultra-pure high frequencies
 Modular digital audio sections for possible future upgrades
 Two custom-built, temperature-compensated crystal oscillators with better than 5 parts per million accuracy
 Heavily modified Philips CD-Pro 2 transport with all-metal chassis
 True class A, fully discrete analogue circuits with no negative feedback
 First-order analogue filter with silvered Mica capacitor
 +/- 20 VDC regulated voltage supplies for best THD and noise suppression in analogue sections
 Four separate custom-built toroidal transformers for digital and analogue sections
 Completely isolated power supplies for digital section and transport/display
 15,000 microFarad power capacitor banks per channel
 True Dual Mono Configuration
 Ultra-short signal path with minimal Internal wiring
 Four-layer printed circuit board with silver surface for optimal signal transfer
 Balanced analogue outputs with PCB-mounted gold-plated Swiss Neutrik XLR sockets
 Single-ended analogue outputs with custom-made PCB-mounted gold-plated phono sockets
 Balanced 110Ω AES/EBU and 75Ω S/PDIF digital outputs
 40-gram precision-tooled anodized aluminium disc clamp
 Fully remote controlled operation
 Designed and built in Denmark
