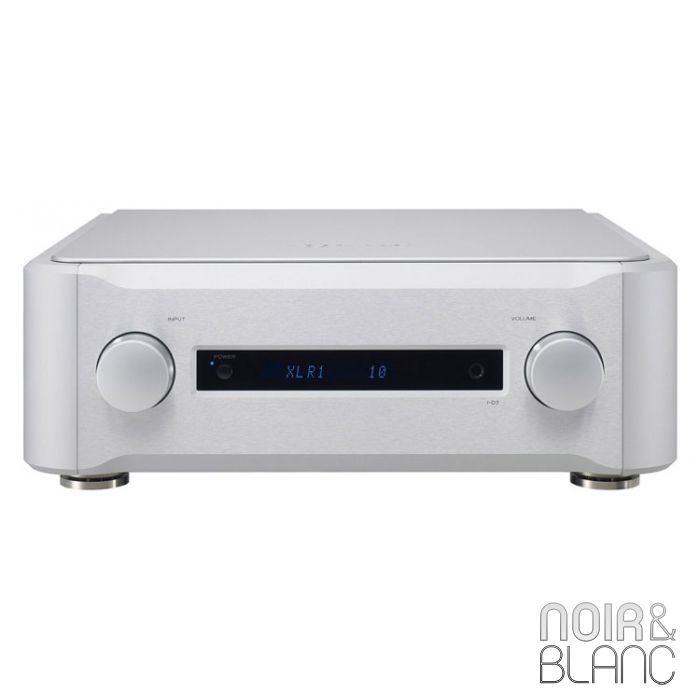

Esoteric I-03

Speaker Outputs

Rated output power 180 W + 180 W (8 Ω)

240 W + 240 W (6 Ω)

300 W + 300 W (4 Ω)

Maximum output power 250 W + 250 W (8 Ω)

320 W + 320 W (6 Ω)

380 W + 380 W (4 Ω)

Total harmonic distortion 0.03 % (1 kHz, 6 Ω)

Frequency response 5 Hz - 70 kHz (+1 dB, -3 dB, 6 Ω)

Signal-to-noise ratio (S/N) 110 dB (JEITA)

Minimum required impedance 4 Ω

Speaker output terminals Binding posts x 1 stereo

Analog audio inputs

Jacks RCA jacks x 3 stereo

RCA2: can be connected to an AV-amplifer's pre-output

RCA3: can be switched among LINE, PHONO MM and PHONO MC

XLR jacks x 2 stereo

Input impedance LINE: 100 kΩ / PHONO MM: 47 kΩ / PHONO MC: 100 Ω

Analog audio outputs

Jacks RCA jacks x 1 stereo

Output impedance 470 Ω

General

Power supply AC 230V 50Hz

AC 120V 60Hz

AC 220V 60Hz

Power consumption 280 W

External dimensions (W x H x D) 445 x 162 x 468 mm

(17 1/2" x 6 3/8" x 18 3/8" )

(including protrusions)

Weight 31 kg (68 lb)
