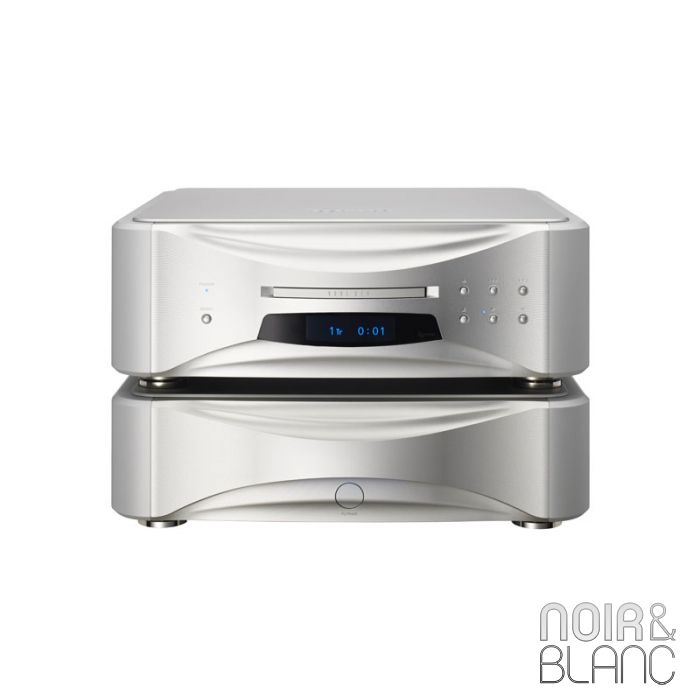

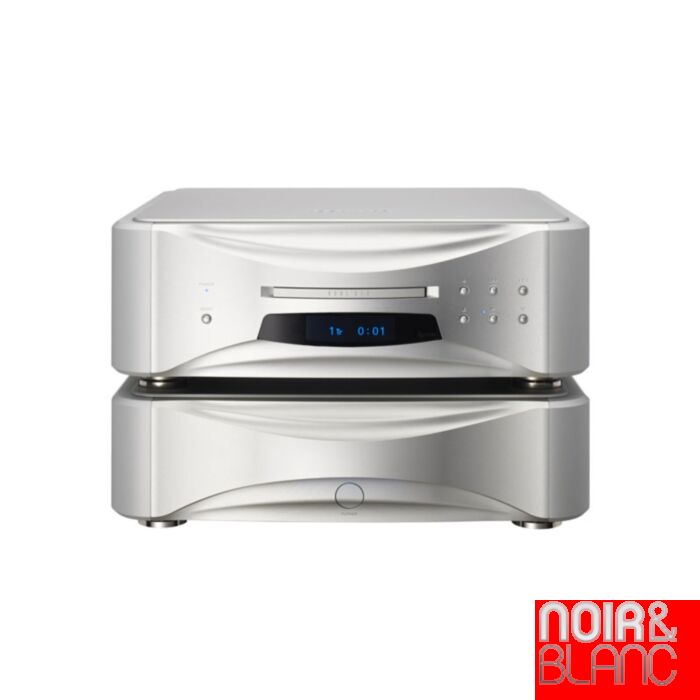

Esoteric Grandioso P1

Compatible disc types

Super Audio CD, CD (CD-R/CD-RW compatible)

Digital audio output

ES-LINK output x 2

XLR output x 2 (Use 2 terminals for Dual AES output)

i.LINK (AUDIO) output (6-pin) x 1

i.LINK (AUDIO) output (4-pin) x 1

RCA output x 1

Clock synchronization input format

Jack BNC×2

Clock synchronization frequencies 44.1 kHz,88.2 kHz,176.4 kHz,10 MHz,22.5792 MHz

Input impedance IN 75Ω

10MHz IN 50Ω

Input level IN TTL levels

10MHz IN Sine wave: 0.5 to 1.0 Vrms

Input frequency range ±10 ppm

General

Power supply AC 230V 50Hz

AC 120V 60Hz

AC 220V 60Hz

Power consumption 24W

External dimensions

(W x H x D)

(Including protrusions) Main unit: 445 mm x 162 mm x 448 mm (17 1/2" x 6 3/8" x 17 5/8")

Power supply unit: 445 mm x 132 mm x 452 mm (17 1/2" x 5 1/4" x 17 3/4")

Weight Main unit: 27 kg (59 1/2 lbs)

Power supply unit: 24 kg (53 lbs)

Accessories Remote control unit (RC-1156) x 1, Batteries (AA) x 2, HDMI cable x 1, Power cord set x 1, Felt pads x 4, Owner’s manual x 1, Warranty card x 1
