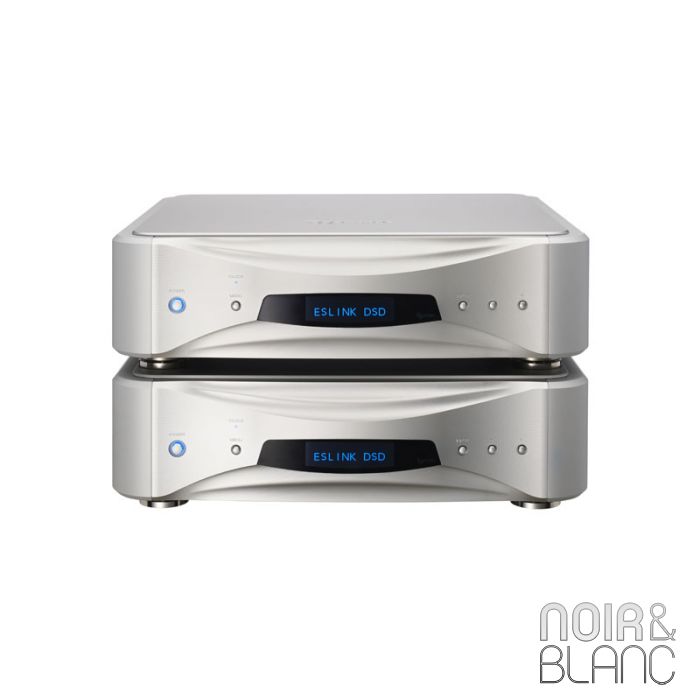

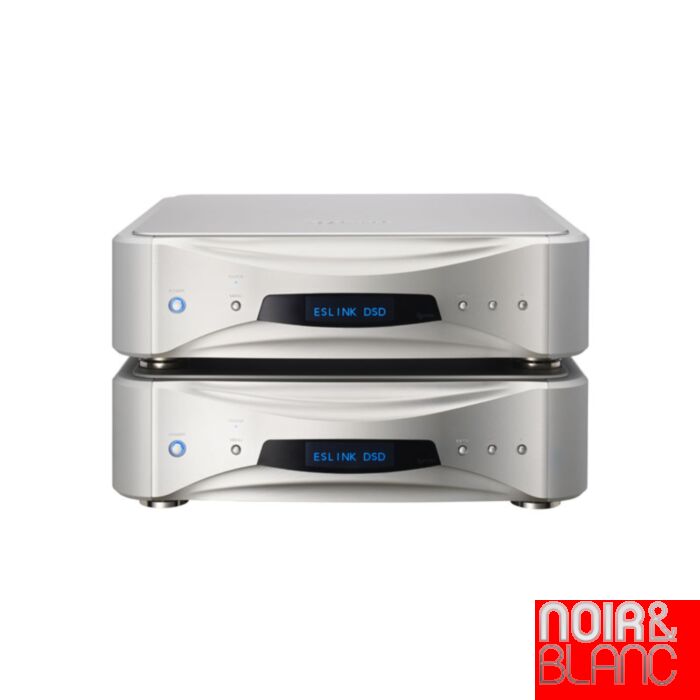

Esoteric Grandioso D1
Ce produit n'est plus disponible
Une question avant de finaliser votre commande ?
Notre équipe d'experts vous réponds par email ou au +32 538 44 51 (mar-sam, 10h-12h30 et 14h-18h30)
Fiche technique
Informations techniques complémentaires
Analog audio output
Terminals XLR x 1
RCA x 1
Output impedance XLR 100Ω
RCA 47Ω
Maximum output level
(1 kHz, full scale, 10 k Ω) XLR 5.0Vrms
RCA 2.5Vrms
Frequency response
(when 192kHz PCM signal input) 5Hz~55kHz(-3dB)
Signal-to-noise ratio (S/N) 113dB
Total harmonic distortion 0.0007%(1kHz)
Digital audio input
ES-LINK terminal x 1
Input signal format 352.8 kHz / 384 kHz, 48bit
Linear PCM (ES-LINK4 format)
DSD (ES-LINK4 format)
XLR terminal x 1
Input level 5.0Vp-p
Input impedance 110Ω
Dual connection
Input signal format 32-384 kHz, 16-24 bit
Linear PCM (DUAL AES format)
32-192 kHz, 48 bit
Linear PCM (ES-LINK3 format)
DSD (ES-LINK1, ES-LINK2 format)
Single connection
Input signal format 32-192 kHz, 16-24 bit
Linear PCM (AES/EBU format)
DSD (ES-LINK1, ES-LINK2 format)
RCA terminal x 2
Input level 0.5Vp-p
Input impedance 75Ω
Input signal format 32-192 kHz, 16-24 bit
Linear PCM (IEC60958 format)
Optical digital terminal x 1
Input level -24.0 to -14.5 dBm peak
Input signal format 32-192 kHz, 16-24 bit
Linear PCM (IEC60958 format)
i.LINK (AUDIO) terminal x 2 (6-pin, 4-pin) S400
Input signal format 32-192 kHz, 16-24 bit, Linear PCM
DSD
USB port . B connector x 1
Input signal format 32-384 kHz, 16-32 bit, Linear PCM
2.8 MHz, 5.6 MHz, DSD
Clock output
Terminal BNC x 1
Output level equal to TTL level (into 75 Ω load)
Output frequency 44.1, 88.2, 176.4, 48, 96, 192 kHz,
22.5792, 24.576 MHz
same frequency as input (when output set to thru)
Output frequency precision ±0.5 ppm (when shipped new)
Clock input
Terminal BNC x 2(WORD IN, 10MHz IN)
Input impedance CLOCK IN 75Ω
10MHz IN 50Ω
Input frequency compatibility CLOCK IN 44.1, 88.2, 176.4, 48, 96, 192 kHz
22.5792, 24.576 MHz (±10 ppm)
10MHz IN 10 MHz (±10 ppm)
Input level CLOCK IN equal to TTL level
10MHz IN Sine wave: 0.5 to 1.0 Vrms
General
Power supply AC 230V 50Hz
AC 120V 60Hz
AC 220V 60Hz
Power consumption 14 W
External dimensions (W x H x D)
(Including protrusions) 445 mm x 132 mm x 448 mm (17 1/2" x 5 1/4" x 17 5/8")
Weight 24 kg (53 lbs)
Accessories Remote control unit (RC-1156) x 1, Batteries (AA) x 2, HDMI cable x 1, Power cord set x 1, Felt pads x 4, Owner’s manual x 1, Warranty card x 1
L'avis de Noir & Blanc
L'Esoteric Grandioso D1 est le denier né des convertisseurs de la marque, véritable State of thé Art.
C'est un convertisseur monophonique très haut de gamme repoussant encore les limites de décryptage du signal.
