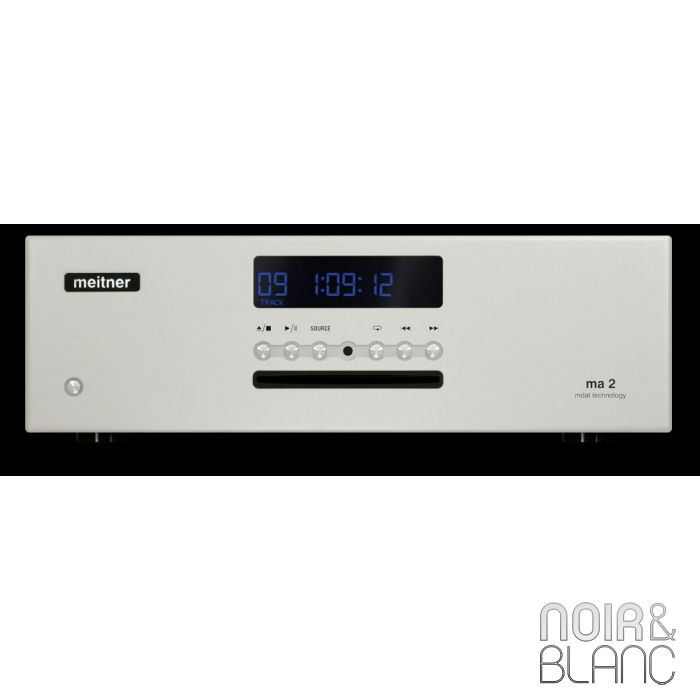

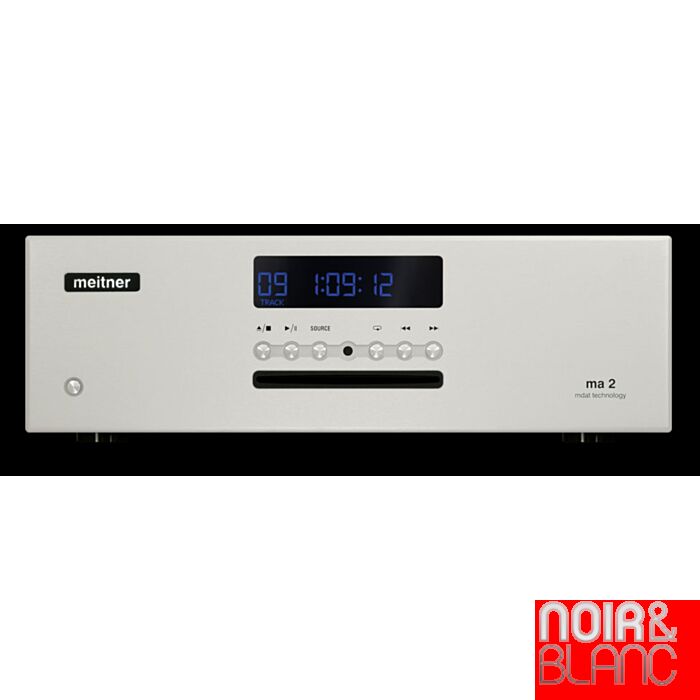

EMMLabs Meitner MA2 CD

Key Features & Specifications:

• Advanced slot-loading transport for Red Book CD playback

• Supported sampling rates of 44.1, 48, 88.2, 96, 176.4 and 192kHz at word

lengths up to 24 bits through all 4 digital inputs:

• 1 x USB

• 1 x AES/EBU

• 1 x TOSLINK S/PDIF

• 1 x COAX S/PDIF

• DSD streaming over USB (DoP 1.0 specification)

• MFAST™ asynchronous technology for instant signal acquisition, jitter-free

performance

• MDAT™ signal processing technology:

• Provides 2x DSD upsampling for PCM playback

• Preserves phase, frequency and dynamic integrity of the waveform

• MDAC™ discrete dual differential D-to-A conversion circuit

• MCLK™ high-purity master clock that establishes new benchmarks in jitter

performance

• Multifunction infrared remote control

• USB service port for future software upgrades

• RS232 serial port for wired remote control

• Power supply:

• Power factor corrected

• Universal 90V-260V, 50/60Hz

• Power consumption: max. 50W

• CE Approved

Stereo analog outputs: Balanced (XLR) and Unbalanced (RCA)

Output voltage (with 0dBfs input):

• XLR outputs: 4.6Vrms (+15.4dBu)

• RCA outputs: 2.3Vrms (+9.4dBu)

Output impedance:

• 300 ohms balanced (XLR)

• 150 ohms unbalanced (RCA)

Dimensions W x D x H: 435 x 400 x 140mm

Weight: 9.0 kg/19.8 lbs net with remote control

Designed and Manufactured in Canada
