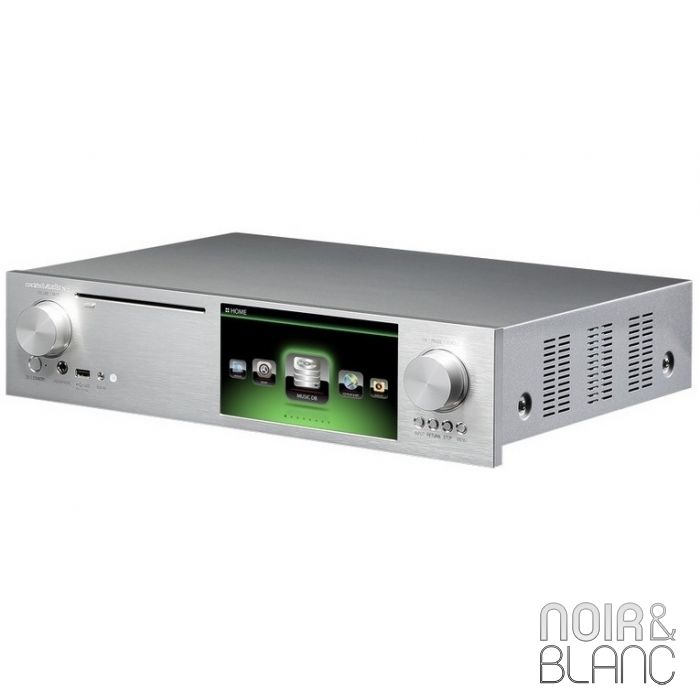

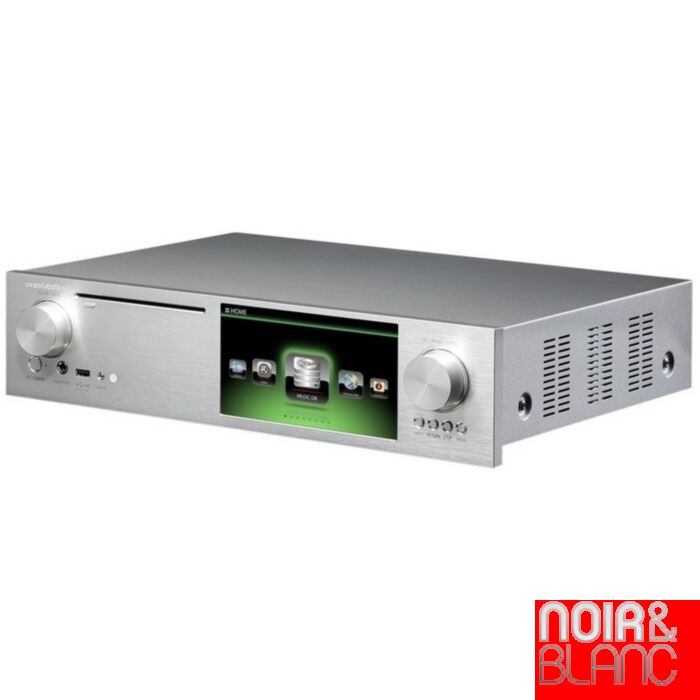

Lecteurs audio Cocktail Audio X45

Model name

cocktailAudio X45

Host CPU & Memory

CPU : Dual Core ARM Cortex A9 running at 1.0GHz

Main Memory : DDR-1066 1GByte

NAND Flash 8GByte

CD Player

Type

Front Loading

Supported media

CD, CD-DA, CD-R, CD-RW, DVD-R/RW

Display

7.0" TFT LCD(1,024 x 600pixels)(* able to connect to ext. screen via HDMI out)

Interface

Key & Jog(Volume/Scroll), IR Remote Control, Customized Remote App for iOS and Android devices, Web Interface

Analog Out

Balanced(PRE-OUT)

XLR, Dynamic Range: 130dB (Max 4.5Vrms, Stereo) THD +N: 0.0004%

(Sabre³² ES9018K2M Dual DAC)

Unbalanced(PRE-OUT)

RCA, Dynamic Range: 130dB (Max 2Vrms, Stereo) THD +N: 0.0004%

Headphone Out

6.35mm Jack, 100mW+100mW@1Khz, 600ohm, 0.1% THD

Digital out

COAXIAL x 1

S/PDIF 75ohm RCA, Sample rate: up to 24bit/192KHz

(Variable/Fixed)

TOSLINK x 1

S/PDIF, Sample rate: up to 24bit/192KHz

AES/EBU/XRL x 1

110ohm, Sample rate: up to 24bit/192KHz

USB Audio x 1

USB Audio Class 2.0 Output

HDMI Out x 1

HDMI Audio Out(*Shared with HDMI Out for external screen)

Analog Input

LINE In x 1

L&R RCA at the rear, default 2Vrms(controllable 1~4Vrms)

Aux In x 1

3.5mm Phone Jack on the front, default 1Vrms(controllable 0.5~2Vrms)

Phono In x 1

MM Input, default 7.5mVrms(controllable 3.75~15mVrms)

Digital Input

COAXIAL x 1

Sample Rate: up to 24bit/192Khz

TOSLINK x 1

Sample Rate: up to 24bit/192Khz

AES/EBU XLR x 1

Sample Rate: up to 24bit/192Khz

USB Audio Input

USB B type connector, USB Audio Class 2.0 input

(USB DAC)

(support up to PCM 384Khz/32Bit, DSD Native 256, and MQA file)

Supported Storage

Hard Disk

2.5" SATA, up to 2TB

* Bigger capacity of storage will be supported by

3.5" SATA, up to 8TB

firmware update when available in the market

SSD

2.5" SATA, up to 2TB

Tuner

DAB+/FM Radio

Selectable for DAB/DAB+ or FM Radio

Connectivity

USB Host

USB3.0(5V/1A) x 2 at rear

USB2.0(5V/1A) x 1 at front

Network

Wired

Giga Fast Ethernet(10/100/1000Mbs)

Wireless(Option)

※ 802.11b/g/n WiFi USB dongle(Option)

HDMI Out

Connect to external screen (* Shared with HDMI Audio Out)

Codec&Format supported

MQA, PCM 384Khz/32Bit, DSD(DSD64, DSD128, DSD256), DXD(24Bit/352.8KHz),

HD WAV(24Bit/192KHz), HD FLAC(24Bit/192KHz), APE/CUE, WAV, FLAC, ALAC, AIFF, AIF, AAC, M4A, MP3, WMA, CAF, Ogg

Vorbis, PCM, M3U, PLS, etc

Network Protocols

UPnP(DLNA) Server/Client/Media Renderer, Samba Server/Client, FTP Server, Web Server, etc

Supported

Internet

Internet Radio

Airable

Services

Online Music Services

TIDAL, Deezer, Qobuz, Spotify Connect

Supported OSD languages

English, German, French, Spanish, Italian, Polish, Dutch, Russian, Traditional Chinese, Korean,Japanese (To be added by request)

Isolated Power management

Toroidal Transformer

For audio signal management

70W internal SMPS

For digital CPU management

12V Trigger Out

Max 200mA, 12V

Power Source

220V area

AC 220V - 240V, 50/60Hz

110V area

AC 110V - 120V, 50/60Hz

Mechanical

Material

Front

13mm thickness aluminum by CNC cutting

Knob

Aluminum by CNC cutting

Body

Metal

Dimension

Without foot

441mm(W) x 330mm(D) x 100mm(H)

With foot

441mm(W) x 330mm(D) x 111mm(H)
