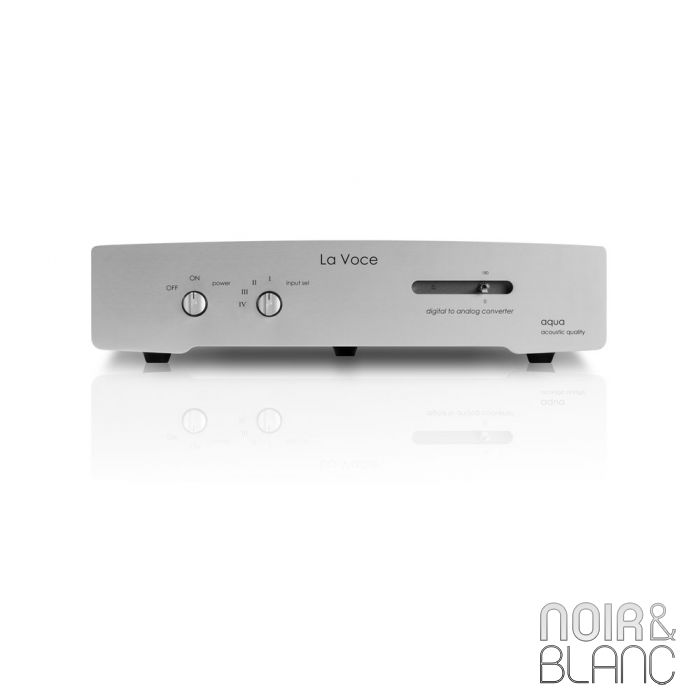

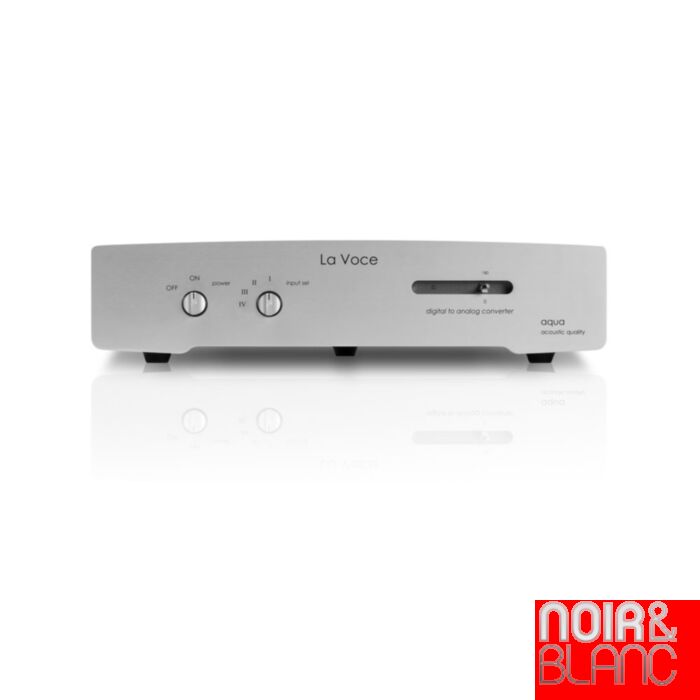

Aqua La Voce S2-K DAC
Ce produit n'est plus disponible
Une question avant de finaliser votre commande ?
Notre équipe d'experts vous réponds par email ou au +32 538 44 51 (mar-sam, 10h-12h30 et 14h-18h30)
Fiche technique
Informations techniques complémentaires
La Voce S2 D/A Converter
VAT : IT 08602220967
| Native Sample Rates Supported |
S/PDIF - AES/EBU :
24 bit / 192 KHz AQlink - I2S serial bus : 24 bit / 384 Khz |
| Asynchronous USB (High Speed) |
USB Type B
|
| Digital Receiver |
PLL (phase locked loop) technology 128 or 256 FS internally selectable
|
| AQlink (I2S bus) |
CMOS level
|
| Digital filter |
Proprietary DFD (Direct From Decoder) digital decoding without digital filter
|
| Oversampling factor |
1x
|
| Digital to analog conversion type |
MODULAR:
Multibit sign magnitude R2R ladder (PCM1704-K DAC option) |
| Analogue Outputs |
UNBAL 2 RCA Output 2.1V RMS
BALANCED (asymmetrical output) 2 XLR Output : 4.2V RMS |
| Current / voltage conversion (I / V) | Resistor passive (I / V) |
| Output Impedance |
100 Ω RCA - 200 Ω XLR
|
| Load Impedance |
10 k Ω (min.)
|
| Frequency Response |
20Hz to 20kHz +0.5dB/-0.5dB
|
| THD + N |
<0.1% 1KHz -20dB
|
| Front Panel |
Power, input selector
|
| Power Consumption |
100-115V / 220-240V; 50 or 60Hz - 58VA
|
| Dimensions |
( W x D x H ) 450 x 310 x 100 mm
|
| Weight |
7 kg
|
| Front finish |
Satin Alu Silver or Satin Black
|
| Case finish |
Grey Nextel powder coated
|
L'avis de Noir & Blanc
The new La Voce S2 combines product innovation and state-of-the-art technology, producing superior sound performance and the best styling.
Designed to provide absolute modularity and the ultimate in sound quality, La Voce S2 D/A converter is the culmination of years of aqua’s research in the areas of electronic engineering in relation to digital audio reproduction.
Further refined La Voce S2, a revolutionary design which employs modular R2R type converters in DFD configuration:
- cod. D104K - Burr Brown PCM1704-K (2 dac) - sign magnitude R2R ladder DAC 24bit / 192 kHz
- cod. D101 - Philips TDA1541A - R2R 16 bit / 96 kHz (R1, S1 grade selection on request)
- cod. D165 - Analog Devices AD1865 - R2R 18 bit / 192 kHz
