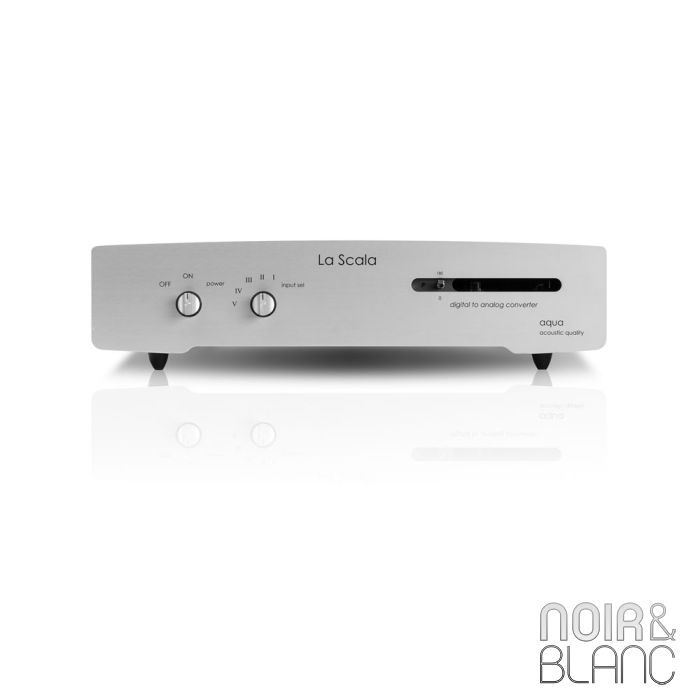

Aqua La Scala MKII DAC
Ce produit n'est plus disponible
Une question avant de finaliser votre commande ?
Notre équipe d'experts vous réponds par email ou au +32 2 538 44 51 (mar-sam, 10h-12h30 et 14h-18h30)
Fiche technique
Informations techniques complémentaires
| Native Sample Rates Supported |
S/PDIF - AES/EBU :
24 bit / 192 KHz AQlink - I2S serial bus : 24 bit / 384 Khz |
| Asynchronous USB (High Speed) |
USB Type B
|
| Digital Receiver |
PLL (phase locked loop) technology 128 or 256 FS internally selectable
|
| AQlink (I2S bus) |
CMOS level
|
| Digital filter |
Proprietary DFD (Direct From Decoder) digital decoding without digital filter
|
| Oversampling factor |
1x
|
| Expansion slot |
Optional digital decoder board for future expansion
|
| Digital to analog conversion type |
Multibit sign magnitude R2R ladder (upgradable)
|
| Analogue Outputs |
UNBAL 2 RCA Output 2.6 V RMS
BALANCED (symmetrical output) 2 XLR Output : 5.2V RMS |
| Current / voltage conversion (I / V) | Transformer (I / V) |
| Output Impedance |
100 Ω RCA - 200 Ω XLR
|
| Load Impedance |
10 k Ω (min.)
|
| Frequency Response |
20Hz to 20kHz +0.5dB/-0.5dB
|
| Phase Response |
Linear phase
|
| THD + N |
<0.1% 1KHz -20dB
|
| Front Panel |
Power, input selector, Phase Invert switch
|
| Power Consumption |
100-115V / 220-240V; 50 or 60Hz - 58VA
|
| Dimensions |
( W x D x H ) 450 x 370 x 100 mm
|
| Weight |
9 kg
|
| Front finish |
Satin Alu Silver
|
| Case finish |
Grey Nextel powder coated
|
L'avis de Noir & Blanc
Since its introduction in 2010, the La Scala D/A converter has earned the distinction of “the standard reference in a class by itself”.
With its extraordinary sound quality and stylish appearance it has remained the DAC of discerning audio enthusiasts.
Improving the sonic performance of the La Scala was no small task. The first step was to enhance the overall precision of the digital circuit. La Scala MkII inherits the innovative proprietary DFD decoding without any digital filter, assuring a pure and precise digital signal. In addition aqua - acoustic quality has developed a single-stage signal amplifier: VALVE / MOSFET direct-coupled and LED bias. It uses ECC81 tube - a High-Frequency triode - for its low noise main feature. This is directly connected to High-Voltage MOSFET to enable :
- simplicity
- wide bandwidth
- fast response
- no overshoot, no ringing, no roll-off
- lower output impedance compared to conventional circuits
- no feedback
- low distortion
La Scala MkII uses long-life valves with an average life of approximately 10,000 hours.
