he Art of the digital domain
Uncompromised in every respect, La Diva cd transport is the culmination of aqua’s R&D in the areas of electronic and mechanical engineering.
La Diva compact disc... Lire la suite
Ce produit n'est plus disponible
Livraison gratuiteou retrait en magasin
Paiement en ligne 100% sécurisé
Garantie 2 ans
Une question avant de finaliser votre commande ?
Notre équipe d'experts vous réponds par email ou au +32 538 44 51(mar-sam, 10h-12h30 et 14h-18h30)
Fiche technique
Informations techniques complémentaires
Disc Compatibility
CD, CD-R
CD Formats
Red Book
Drive mechanism
PHILIPS CD-PRO2 Customized
Pick-Up Technology
TRIGINTA preamplifier & Laser supply
Optical
Single focault - 3 beam method
Disc Drive Motor
Precision DC Motor
Servo power supply
High-performance voltage regulator (high-current)
Digital decoder
Proprietary ISDC
Digital isolators
Custom designed discrete circuit with high-speed photocouplers
Standby, Display, Play, Pause, Stop, Previous, Next Switches
Display
Fluorescent display (VFD) with user off-selectable illumination
Remote Control
Infra Red (RC5)
Power Consumption
100-115V / 220-240V; 50 or 60Hz - 38VA
Disc loading
Top-Loading (Manual)
Dimensions
( W x D x H ) 450 x 370 x 100 mm
Weight
10 kg
Front finish
Satin Alu Silver
Case finish
Grey Nextel powder coated
L'avis de Noir & Blanc
he Art of the digital domain
Uncompromised in every respect, La Diva cd transport is the culmination of aqua’s R&D in the areas of electronic and mechanical engineering.

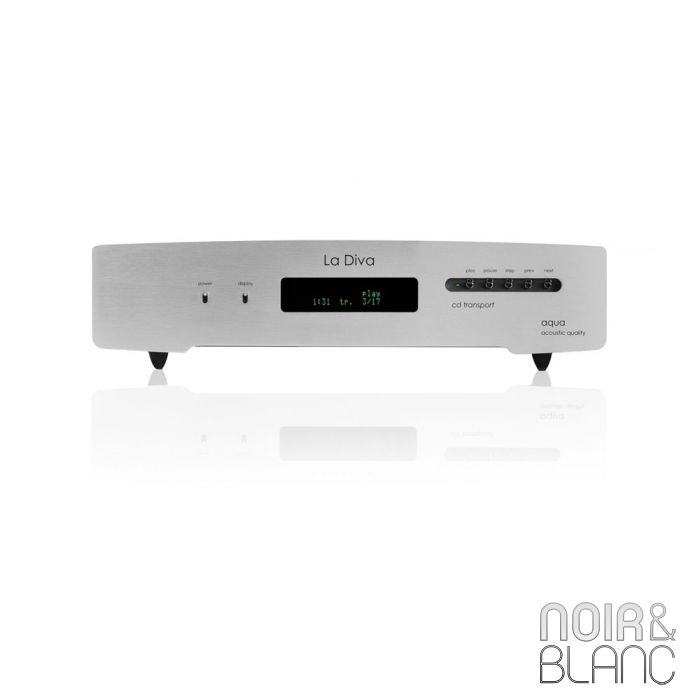

La Diva compact disc transport
• High performance proprietary ISDC (Isolated Synchronous Discrete Circuit) digital decoding and clock manager
• Custom designed discrete circuit with high-speed photocouplers for Galvanic and magnetic isolation between CD drive unit and digital output
• Ultra massive chassis construction and newly developed high-rigidity sub chassis with Nextel for CD drive unit cancels internal and external acoustic and mechanical vibrations, enabling exceptionally accurate "Red Book" RF signal
• DC disc drive motor allows to read the data accurately and minimize Jitter
• Moplen clamp to avoid flywheel masses and vibrations
• Sophisticated signal processing technology assures excellent CD Red Book signal
• High-performance multi-stage voltage regulator (high-current stage for accurate servo DISC drive rotation, tracking and focus)
• Jitter free digital interface AQlink(I2S protocol), uncompromising digital connection to La Scala DAC, La Voce DAC
• etherCON RJ45 (AQlink) outputconnection to DAC, employs CAT6 cable can connect both RJ45 and professional etherCON RJ45
• Separate custom-built toroidal transformers for digital and servo motors/actuators
• MODULAR DESIGN with upgradeable multi board system
• Precision Philips CD-Pro2 transport customized
• High-quality parts selected for sound quality: - 105° long life capacitors - low noise Metal Foil ultra-precision resistors - metallized film pulse capacitor - ultra-fast diodes - halogen free cables
• Aluminum top loading tray machined from billet
• Non-magnetic low-resonance aluminum chassis with Nextel
• Field upgradeable firmware
• Fluorescent display (VFD) with user off-selectable illumination
