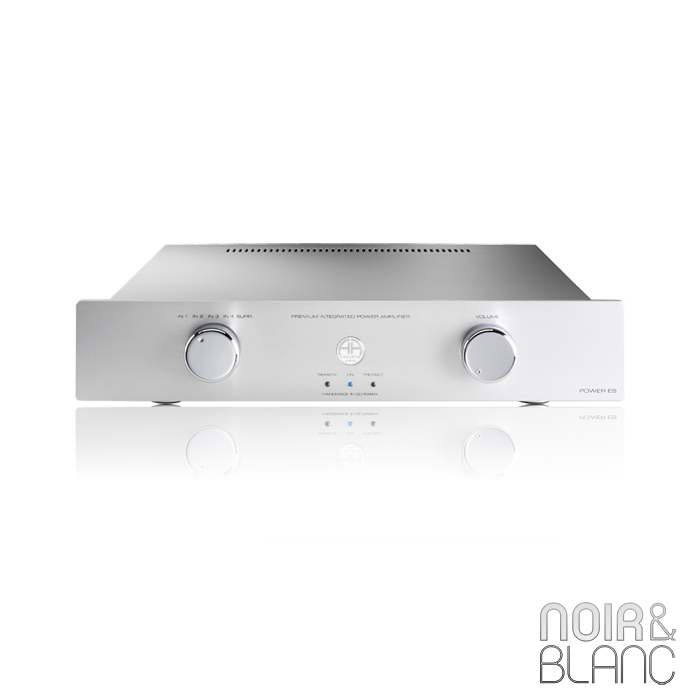

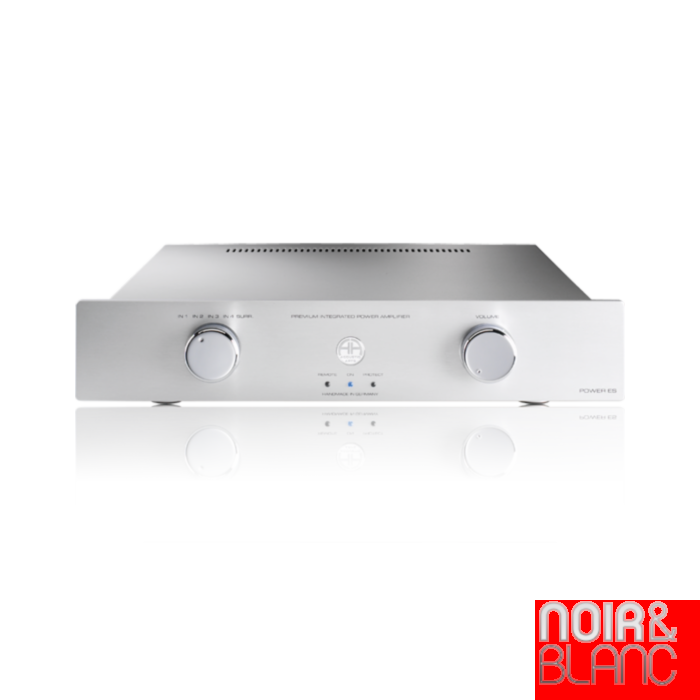

Accustic Arts Power ES MK2
Ce produit n'est plus disponible

Une question avant de finaliser votre commande ?
Notre équipe d'experts vous réponds par email ou au +32 538 44 51 (mar-sam, 10h-12h30 et 14h-18h30)
Fiche technique
Informations techniques complémentaires
| Specifications (of POWER ES without optional phono stage) | |
| Inputs: | 4 x unbalanced high level inputs (RCA) 1 x unbalanced (RCA) as ”SURROUND-BYPASS” |
| Signal difference left/right: | < 0,5 dB (from 0 dB to -40 dB) |
| Input resistance: | 50 kΩ |
| Total transformer power: | 330 VA (watts) |
| Power supply capacity: | > 50.000 µF |
| Rated power output: (at THD+N = 0,1 %) |
2 x 120 watts on 4Ω 2 x 90 watts on 8 Ω |
| Rise time / fall time: | 4.6 µs with 4 Ω load |
|
Distortion (THD+N): |
0.008 % on 4 Ω load with 1 kHz and 10 watts 0.005 % on 8 Ω load with 1 kHz and 10 watts |
| Signal-to-noise-ratio: (A weighted) |
-89 dBA (ref. 6.325 V) |
| Damping factor: | > 500 |
| Dimensions (H x W x D): | 96 x 482 x 400 mm / 3.8 x 19.0 x 15.7 inches |
| Weight: | approx. 11 kg / 24.4 lbs. |
| Additional specifications of POWER ES with optional phono stage | |
| Inputs: | 3 x unbalanced high level inputs (RCA) 1 x unbalanced MM input (RCA) 1 x unbalanced MC input (RCA) 1 x unbalanced (RCA) as ”SURROUND-BYPASS” |
| Gain: | MM operation: 40 dB (at 1 kHz) MC operation: 60 dB (at 1 kHz) |
| Input impedance: | MM: 47 kΩ/50 pF - 150 pF - 270 pF - 370 pF MC: 100 Ω |
| RIAA precision: | +/- 0.15 dB (50 Hz to 20 kHz) |
| Signal-to-noise-ratio: (A weighted) |
MM operation: -87 dB (ref. 6.325 V) MC operation: -74 dB |
