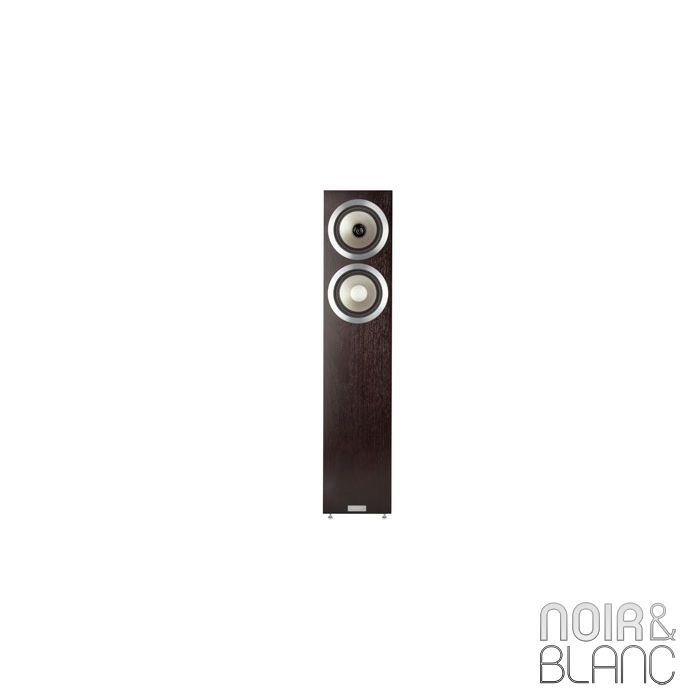

Tannoy Revolution DC6T
Ce produit n'est plus disponible
Une question avant de finaliser votre commande ?
Notre équipe d'experts vous réponds par email ou au +32 538 44 51 (mar-sam, 10h-12h30 et 14h-18h30)
Fiche technique
Informations techniques complémentaires
Recommended amplifier power (Watts RMS) 20 – 175
Continuous power handling
(Watts Peak RMS) 87
Peak power handling (Watts) 350
Sensitivity (2.83 Volts @ 1m) 89dB
Nominal Impedance (Ohms) 8
Frequency response (-6dB) 34Hz – 35kHz
Dispersion (degrees conical) 90
DRIVE UNITS
Dual Concentric™ high frequency 25mm (1”) Titanium dome with Tulip WaveGuide™
Dual Concentric™ low frequency 150mm (6”) treated paper pulp cone with rubber surround.
44mm (1.75”) edge wound voice coil.
Bass Driver 150mm (6”) treated paper pulp cone with rubber surround.
44mm (1.75”) wound voice coil.
CROSSOVER
Crossover Frequency 1.7kHz
Crossover Type Passive low loss 2nd order LF, 1st order HF
CABINET
Enclosure type Rear ported
Construction 15mm particle board, internally cross-braced enclosure
18mm MDF front baffle
Dimensions (excl grille) H x W x D
Dimensions (inc plinth) H x W x D
950 x 202 x 253mm (37.40 x 7.95 x 9.98”)
950 x 256 x 292mm (37.40 x 10.09 x 11.50”)
Volume - litres (cubic feet) 29.6L (1.045 cu. ft.)
Weight 15.1kg (33.3lbs)
Finish Espresso
L'avis de Noir & Blanc
Tannoy’s Dual Concentric™ drivers have long been respected for their musical coherence, precision and detail. The Revolution DC6T incorporates a potent (150mm / 6.00”) Dual Concentric™ drive unit with high power handling and wide bandwidth and an auxiliary (150mm/6.00in) bass driver to give exceptional low frequency performance. This latest version of Tannoy’s world renowned proprietary driver technology and matching auxiliary driver are capable of delivering a room-filling sound from an incredibly compact floor standing cabinet.
Both driver units feature a new multi-fibre paper pulp low frequency cone with the DC unit combining a titanium domed tweeter unit with a powerful neodymium magnet system. With music the DC driver delivers true point-source musical integrity and exceptional instrumental accuracy, yet offers the drive and energy required for home theatre applications. The driver’s rigid chassis and multi-point fixing augments Revolution’s spacious, dynamic sound that thoroughly belies its elegant stature.
