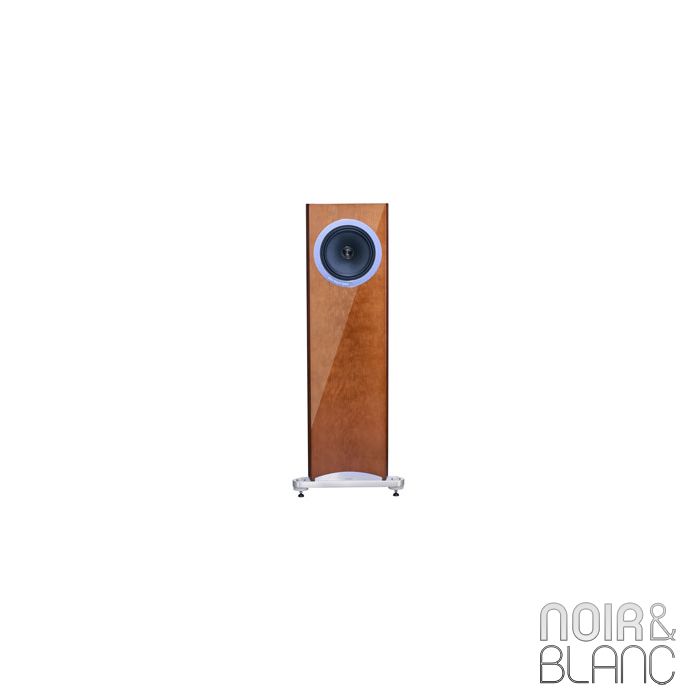

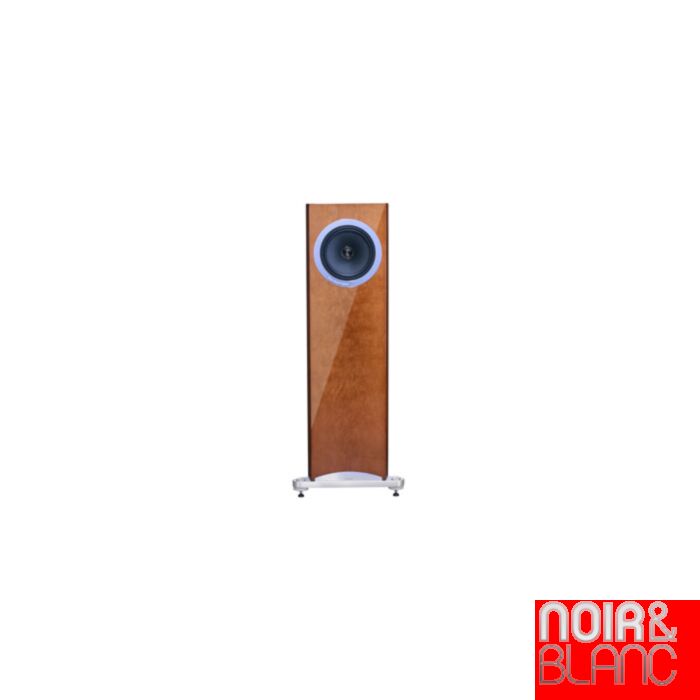

Tannoy Definition DC10A
Ce produit n'est plus disponible
Une question avant de finaliser votre commande ?
Notre équipe d'experts vous réponds par email ou au +32 538 44 51 (mar-sam, 10h-12h30 et 14h-18h30)
Fiche technique
Informations techniques complémentaires
Performance
Recommended amplifier power
(Watts RMS) 30 – 300
Continuous power handling
(Watts RMS) 150
Peak power handling (Watts) 600
Sensitivity (2.83 Volts @ 1m) 93 dB
Nominal Impedance (Ohms) 8
Frequency response (-6 dB) 28 Hz – 22 kHz
Dispersion (degrees conical) 90
Drive Units
Dual Concentric™ high frequency 51 mm (2”) Aluminium alloy dome. Alnico magnet system with Pepperpot Waveguide™
Dual Concentric™ low frequency 250 mm (10”) treated paper pulp cone with twin roll impregnated fabric surround.
52 mm (2”) edge wound voice coil, Alnico magnet system
Crossover
Crossover frequency 1.1 kHz
Crossover type Bi-wired, hard wired passive low loss 2nd order LF, 2nd order compensated HF, Cryogenically treated
Cabinet
Enclosure Type Twin Rear ported
Volume 103 L (3.64 cu. ft.)
Dimensions (H x W x D)
inc plinth & grille 1135 x 345 x 438 mm
(44.69 x 13.58 x 17.24”)
Weight 42.7 kg (94.1 lbs)
Finish High gloss black
High gloss cherry
High gloss dark walnut
L'avis de Noir & Blanc
Definition DC10A
The flagship of the Definition range, the Definition DC10A is a loudspeaker of pure refinement that embodies Tannoy’s core tenets of musical reproduction: A single point source Alnico Dual Concentric™ driver, straight path fully Deep Cryogenically Treated crossover and Tannoy’s signature birch-ply cabinet construction. The DC10A delivers the engaging and articulate sound of Tannoy’s classic Prestige models with the luxurious contemporary style of the Definition series. The Definition DC10A is a thoroughly modern loudspeaker, hand built and rich with traditional values.
The DC10A’s newly developed 10inch Dual Concentric™ driver is powered by Alcomax 3 Alnico motors to deliver a sweet,natural and inherently coherent sound. A new multi-fibre cone material has been developed specifically for the DC10A to realise the very best from the Alnico magnet system and the HF driver is fitted with the latest iteration of Tannoy’s famous Pepperpot WaveGuide™. The large DC10A birch-ply cabinet features a Mass Loading Cavity enabling users to fine tune LF reproduction to their listening room and a new heavyweight metal plinth assembly with convenient top-adjustable spikes. Finished with the contemporary flair and immaculate detailing applied across the Definition range, the DC10A is visually stunning and musically breath-taking.
