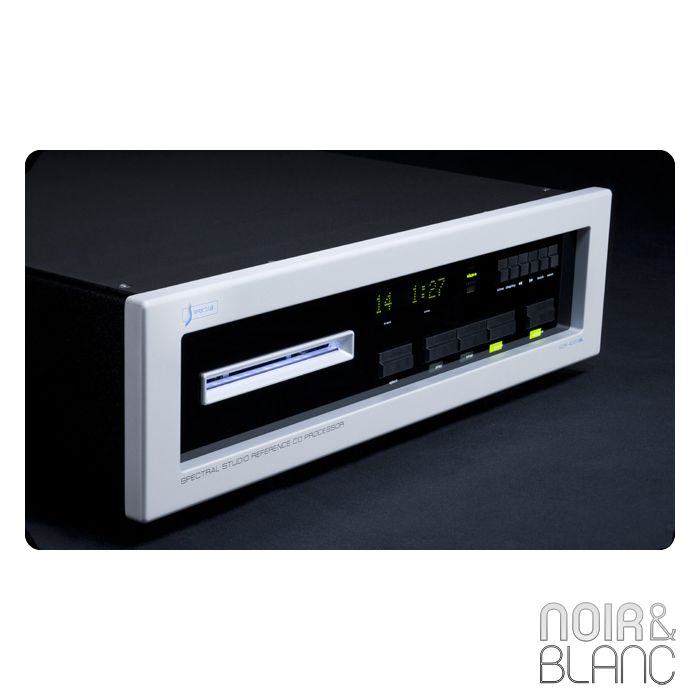

Spectral Audio SDR-4000SL

SDR-4000 Digital Systems Specifications Sample Rate: 44.1KHz D/A Conversion: Four custom 24 bit DACs in double balanced configuration Digital Filter: 8x oversampling, 56 bit math 64 bit accumulator HDCD Analog Filter: Linear phase to 28KHz Frequency Response: DC to 22KHz +/- .3 dB (limited by encoding) DAC Step Resolution: Better than -120dB Digital Noise Output: 100 uV peak to peak or less Transient Overshoot: 8% or less Intrinsic Jitter: 1 picosecond RMS 3-4 picoseconds peak attenuation corner frequency @ 100Hz SDR-4000 Analog Systems Specifications Outputs: RCA single-ended Output Impedance: 100 Ohms Frequency Response: DC to 1.2 Mhz -3 dB Harmonic Distortion: Less than .001 Intermodulation(SMPTE): Less than .001 Nominal Output: .75 Volt rms Output Voltage Swing: 2.5 Volts rms maximum Signal to Noise Ratio: Greater than 115 dB Channel Separation: Better than 115 dB Slew Rate: 250 V/us SDR-4000 Power Requirements Voltage: Factory set 120, 220, 240 VAC @ 47.5 Hz to 440 Hz Continuous Dissipation: 65 Watts SDR-4000 CD Transport Specifications Controls: Front Panel: Load Selector Play Selector Stop Selector Pause Selector Operate/Standby Selector Time Display Function Selector Display Brightness Selector Scan Backward Selector Scan Forward Selector Previous Track Selector Next Track Selector Rear Panel: Spectralink Digital Interface (optional) Main Power Switch AC Line Fuse IEC AC Power Connector Compact Disc Drive: Front load type with VRDS clamping system, diecast alloy contruction Disc Loader: Precision type with polished linear bearings Pickup: Objective lens drive type with 3-beam laser pickup linear drive servo Wow & Flutter: Below measureable limit (accuracy of crystal) SDR-4000 Mechanical Specifications Dimensions: 48cm (19") W, 10.5cm (4.25")H, 40cm (16")D Weight: 14.1 KG (46 lbs.) net
