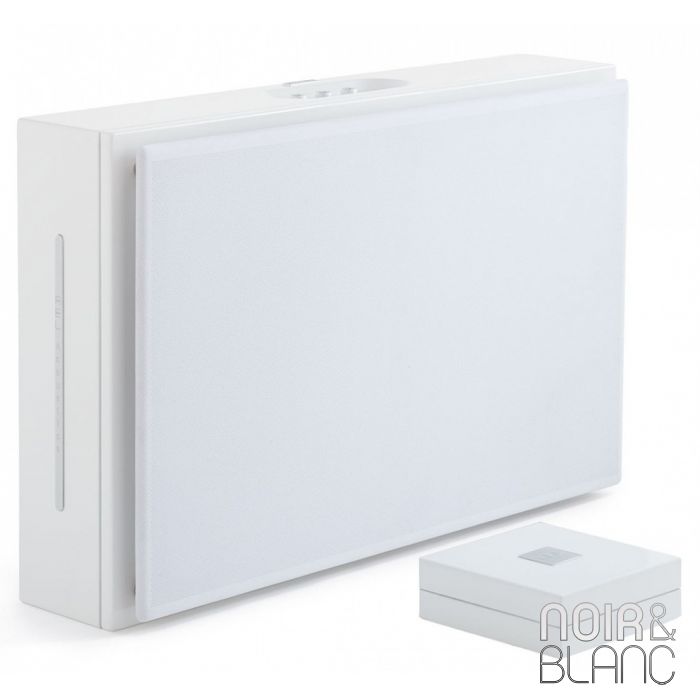

Rel Habitat 1

Type: Sealed, two front-firing active woofers, one back-firing passive woofer

Drive Unit: Two 6.5 in., 165 mm long-throw, steel chassis

Passive Unit: 10 in, steel chassis

Lower Frequency Response: 30Hz at -6dB in room

Input Connectors: High-Level Neutrik Speakon

Low-Level single phono

LFE single phono

Input Impedance

High-Level: 150k

Low-Level: 10k

.1/LFE: 10k ohms

Gain Control Range: 80dB

Power Output: 150 Watts (RMS)

Phase Switch: Yes, 0 or 180 degrees

Amplifier Type: Class D

Protection System

Fully Electronic

SET-SAFE: Yes

D.C. Fault: Yes

Output Short: Yes

Mains Input Voltage: 100-240V

Fuse: 1.6A for 230V operation

3.16A for 120V operation

Power Consumption: 16.3 Watts for 120V operation

19 Watts for 230V operation

When mains switch is turned off, unit draws no power

Dimensions (WHD): 25 x 16 x 4.5 in., (635 x 406 x 114 mm)

Net Weight: 50lbs. (23kg)

Finish: Gloss Piano Black or Gloss White LacquerSupplied Accessories

Mains Lead: Yes

Neutrik Speakon Interconnect: Yes (2 meter cable intended for use with Longbow™ transmitter)

User Manual: Yes

Longbow™ Transmitter

Input Connectors: High-Level Neutrik Speakon

Low-Level single phono

LFE single phono

Input Impedance:

High-Level: 150k

Low Level: 10k

.1/LFE: 10k ohms

Wireless Output Power: 11dBm

Wireless Effective Distance: 50 ft (15.2 meters) with clear line of site

30 ft (9.1 meters) with single stud wall between transmitter and receiver

Mains Input Voltage: 9V DC, 5.5 mm circular connector, positive center

Power Consumption: 600 mW

Dimensions (WHD): 6 x 2 x 6.5 in., (152.4 x 50.8 x 165 mm)

Finish: Gloss Piano Black or Gloss White Lacquer
