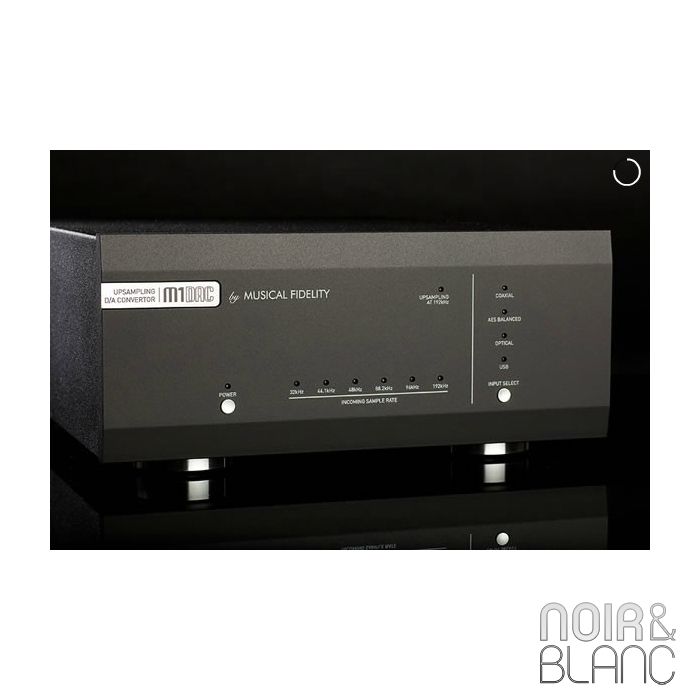

Musical Fidelity M1 DAC

Output Output impedance 47 ohms Output, digital 0dB level RCA output - 2.2V r.m.s. nominal (RCA) 4.4V (XLR) DAC DAC circuit 24 bit Delta-Sigma (bit stream) dual differential 8x over-sampling to 192kHz Total correlated jitter <12 picoseconds peak to peak Linearity <0.1dB down to -96dB Frequency response 10Hz to 20 kHz -0.1dB max. Channel separation >105dB 20 Hz to 20 kHz Signal to noise >119dB “A”- wtd. Total harmonic distortion <0.0025% 10Hz to 20 kHz Connections Line level outputs 1 pair line level RCA (phono), left and right 1 pair line level XLR (balanced), left and right Digital inputs 1 XLR AES balanced digital input 1 RCA coaxial connector SPDIF 32-192 kbps (16-24 bit stereo PCM) 1 TOSLINK optical connector 32-96 kbps (16-24 bit stereo PCM) 1 USB type ‘B’ connector for computer/PDA 32-48 kbps Power requirement Mains voltages 115/230VAC 50/60Hz (factory pre-set) 100VAC 50/60Hz (alternative) Consumption 10 Watts maximum Weight Unit only, unboxed 3.4 kg (7½ lbs) In shipping carton & inc. accessories 4.1 kg (9 lbs) Dimensions Wide 220 mm (8⅔”) High, including feet 100 mm (4”) Deep (front to back) including terminals 300 mm (12”)
