Fiche technique
Informations techniques complémentaires

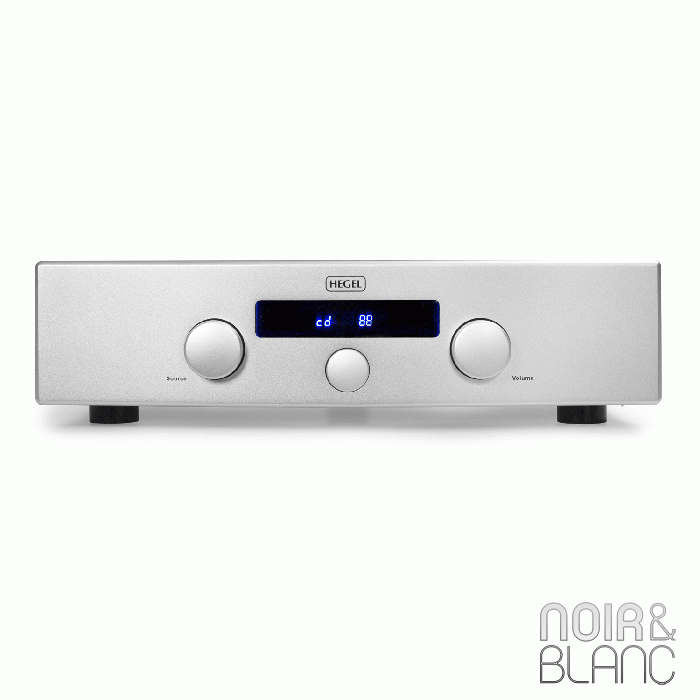

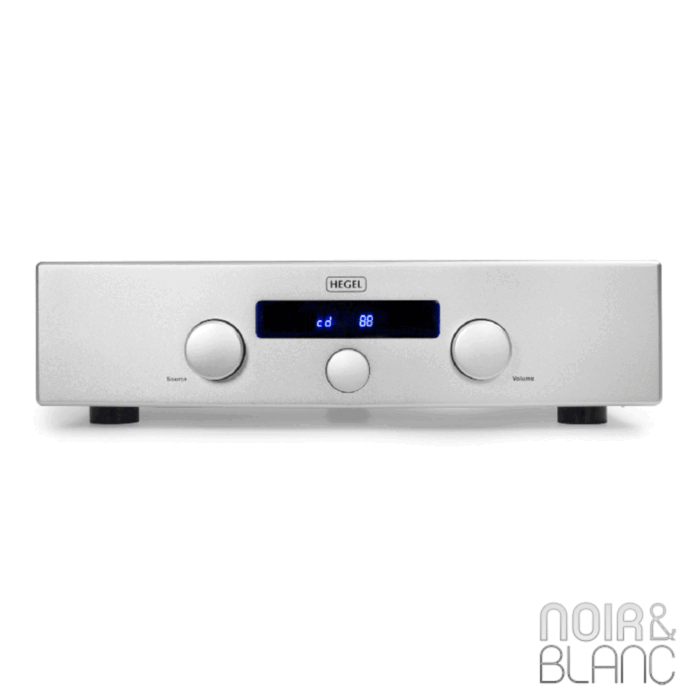

H100 High-End Integrated Amplifier
Output power: 120W + 120W in 8 ohms, 220W + 220W in 4 ohms
Volume, Input source and mute controlled by Hegel RC2 remote
Inputs: 4 Unbalanced (RCA), balanced (XLR) and USB
Home Theatre input: maximum level power amp input (RCA)
2 pcs Pre Out (RCA), 1 pcs Recording output (RCA)
Speaker outputs: One pair of heavy duty gold plated terminals Frequency response: Less than +/- 0.2 dB deviation 20Hz-20kHz
Phase response: Less than 2 degrees deviation 20Hz- 20kHz
Signal to noise ratio: More than 100dB
Crosstalk: Less than -100dB
Distortion: Less than 0.005 % at 50W i 8 ohm
Intermodulation: Less than 0.01 % (19kHz + 20kHz)
Damping factor: More than 1000
Power Supply: 630VA, 67 000uF capacitors
Output stage: 8 pcs 15A 150W high speed bipolar transistors
Power consumption: 30W in standby switched on
Size: 10cm x 43cm x 37cm (HxWxD), weight 16kg
