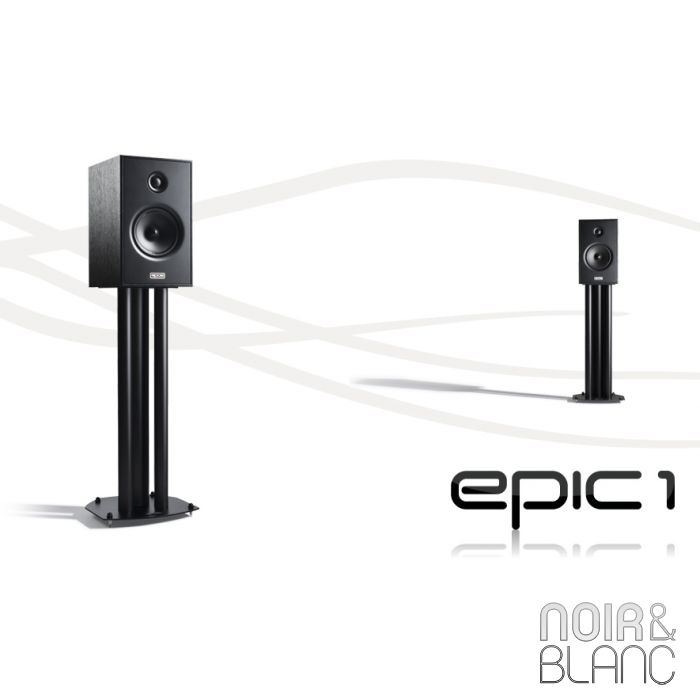

Epos Epic 1

Power Handling 100 Watts unclipped speech and music

Frequency Range 51 Hz – 25 kHz

Impedance 4 Ohm nominal

Sensitivity 88dB / 2.83V@1m

Amplifier Compatibility 20 – 100 Watts

Positioning Not less than 10 cm (4”) from rear wall

Tweeter Epos 25mm soft dome with high-temperature voice coil, ferrofluid cooling and neodymium magnet system. Magnetically shielded

Bass/Midrange Driver Epos mid bass 150mm, with 25mm high-temperature voice coil and polypropylene cone. Magnetically shielded

Crossover Bass and tweeter cross over with 2nd order filters. Tweeter network uses Metal Oxide resistors, polypropylene film capacitor and air-core inductor. Woofer network features a large-core laminated-iron inductor and polypropylene film by-pass capacitor.

Terminal Panel Gold-plated and Bi-wirable. Can be single or double wired by removing shorting links provided.

Internal wiring 18 AWG stranded cable.

Cabinet 18mm MDF wrap and front baffle, extensively braced internally

Finish Cherry or Black Ash vinyl veneer

Grilles Removable ‘audiophile’ grille fitted as standard, Grille–removal tool included. Alternative cloth-covered grilles are packed as accessories

Size HxWxD – mm / in. 310 x 185 x 245 / 12.2 x 7.2 x 9.7

Weight 5.9 kg / 13 lb per single speaker

14.2 kg / 32.2 lb per carton

Packaged One pair per carton
