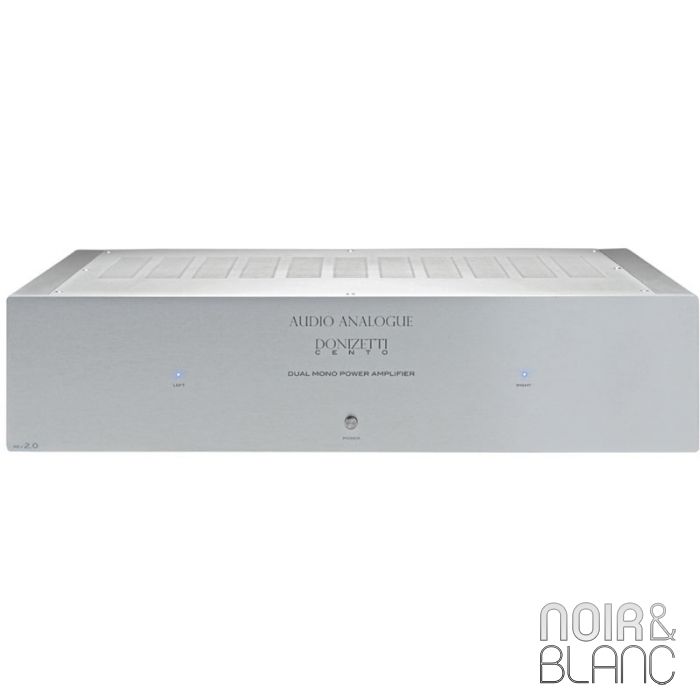

Audio Analogue Donizetti Cento rev 2.0
Ce produit n'est plus disponible
Une question avant de finaliser votre commande ?
Notre équipe d'experts vous réponds par email ou au +32 538 44 51 (mar-sam, 10h-12h30 et 14h-18h30)
Fiche technique
Informations techniques complémentaires
2 channels
Gain 20Hz-20kHz: 26dB
Frequency response:
Balanced in, 1Vrms out: <10Hz - 190kHz +0/-3dB
Balanced in, 28Vrms out: <10Hz - 50kHz +0/-3dB
Single-ended in, 1Vrms out: <10Hz - >200kHz +0/-3dB
Single-ended in, 28Vrms out: <10Hz - 50kHz +0/-3dB
Noise level: Single-ended in, Band limits 0Hz-48kHz, inputs closed on 20 Ohm: -150dB under nominal maximum voltage out
Noise level: Balanced in, Band limits 0Hz-48kHz, inputs closed on 40 Ohm: -144dB under nominal maximum voltage out
Signal/noise ratio Single-ended in, 22Hz-22kHz: 105dB
Balanced in, 22Hz-22kHz: 100dB
Total harmonic distortion THD+N: Balanced in, Pout=100W @ 8 Ohm: 0,025% on the worst channel
Total harmonic distortion THD+N: Single-ended in, Pout=100W @ 8 Ohm: 0,026% on the worst channel
Separation: R->L, L->R, 1Vrms @ 1kHz on the interfering channel, measured channel, input closed on 20 Ohm, 20Hz-20.000Hz: 99dB
Power requirement: 230V 50-60Hz or 115V 50-60Hz
Power consumption: 500VA
L'avis de Noir & Blanc
Analog power supply with a separated toroidal transformer and line for each channel
separated power supply for the trigger out
Large bandwidth and low feedback circuitry
High-quality unbalancer for the best connection to preamplifiers with balanced output
Low IMD, high slew rate power section
Calibrated and integrated electronic protections for electric overloads prevention to minimize sound distortion
Single-ended/balanced input selector located on the rear panel next to the input connectors
High-quality passive components
Available in black and silver
