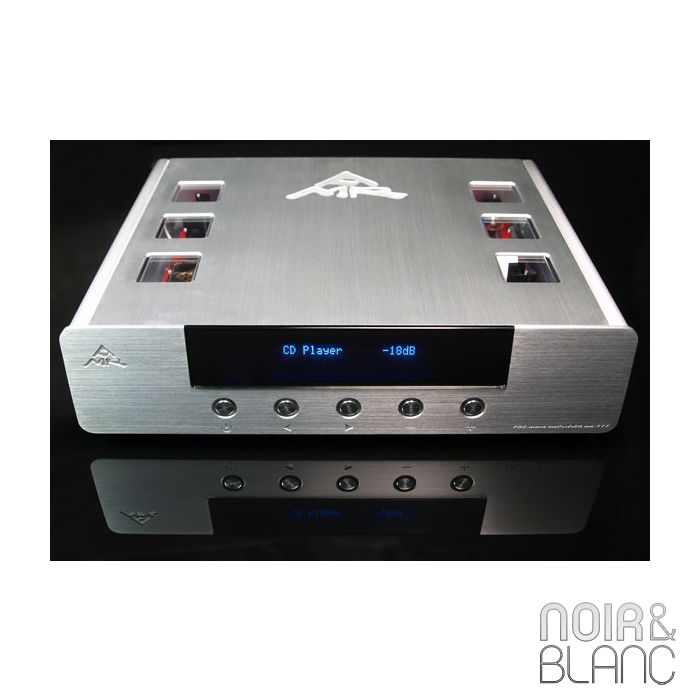

AMR AM-777

Inputs: • 4 x RCA • 1 x XLR Bal. shared with 1 RCA • 1 x USB Volume Control: • -71dB – 0dB in 1dB steps + Mute Input Sensitivity (IHF 2.83V Out)/Impedance: • < 0.05V / > 20KOhm Analogue Outputs: • 1 x RCA; 1 x XLR per channel Power Output IHF Dynamic Power: • 60 watts per channel at 4 or 8 ohm (stereo mode) • 70 watts per channel at 8 ohm (monoblock mode) • 120 watts per channel at 2 or 4 ohm (monoblock mode) FTC: • 60 watts per channel at 4 or 8 ohm (stereo mode) • 70 watts at 8 ohm (monoblock mode) • 120 watts per channel at 2 or 4 ohm (monoblock mode) Output impedance: • 0.33 ohm, 20 - 20,000 Hz Frequency Response (-1dB): • 10Hz - 30kHz Signal-to-noise ratio “A” weighted: • >100 dB Total Harmonic Dist. + Noise (THD+N): • < 0.3% Operational Modes: • Pre-Main amplifier mode; • Power amplifier mode • Monoblock option; Thermionic Electron Valves amplification stage: • 6H1n-EV fitted • ECC88, E88CC, 7308, Cca, 6DJ8, 6922, • 6H23n-EV optional Power Transformer: • 380 VA Custom Torroid (Output Stage) • 32 VA Custom EI Transformer (Valve Stage) Power consumption: • Standby: <1 W • Power on: 25 W • at rated output (4R): 250 W Power Supply Capacitance: • 44,000uF in total Rated voltage: • 100V/120V/230V~ AC 50Hz - 60Hz Mains Fuse: • 100V/120V: 4A slow blow; 230V: 2A slow blow Colour: • Silver or Black Dimensions: • 17.7 in W by 4.7 in H by 14.6 in D • 45 cm W by 12 cm H by 37 cm D • 57 cm W by 49 cm H by 25 cm D (shipped) Weight: • AM-777: 31 lbs / 14 kg • Shipped: 40 lbs / 18 kg
