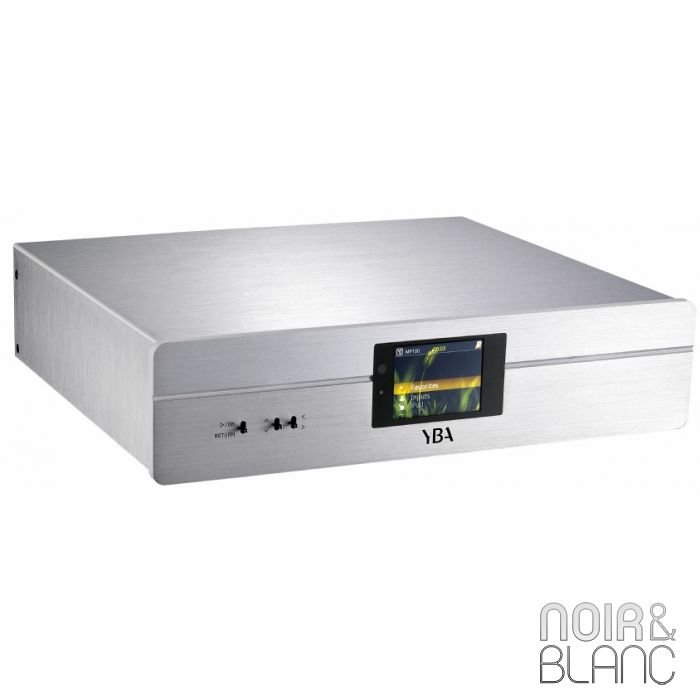

YBA Heritage MP100B Media Streamer

Streaming has become one of the most popular innovations in recent years. Undeniably a product of the times, YBA’s Heritage Media Streamer has one of the most attractive displays we have seen.

The TFT LCD display has a visible area of 7 x 5 cm and provides the ability to select a preferred background theme from a choice of 4. Setting up is simple and takes no more than a few minutes. There is a choice of languages and the clock setting caters for daylight saving where required.

When accessing iPod, if you have album artwork on the your iPod/iPhone, this artwork will be displayed.

Once a network is selected, it provides the ability to listen to Internet radio and stream music via either a wired or wireless option. If an Ethernet connection is available it would always be recommended to use this as wireless networks can sometimes have dropouts.

SPECIFICATION

Supported formats

Support sampling rates

Support resolution

NETWORK

Ethernet

Wi-Fi

WPS

DLNA

Upnp

Internet radio services

Bluetooth

Audio outputs

Digital outputs

Digital inputs

Unbalanced output level

Balanced output level

SNR RCA

SNR XLR

Frequency response

THD+N

D/A Converter

Power supply

Remote

Finish

Dimension

Weight

AIFF, WAV(LPCM), FLAC, MP3, WMA, AAC (local file); MP3, WMA (Internet radio)

32 - 192 kHz

16bit, 20 bit, 24bit

10/100Base-T (RJ45)

IEEE 802.11 b/g

Compatible

1.0/1.5 compatible

DMP/DMR

V Tuner

Bluetooth 4

Gold plated RCA and XLR

Coaxial   (0.5V p-p @ 75 Ohm), Optical

AES/EBU (2V p-p @ 110 Ohm) Coaxial, USB (PC), USB (Host), iPod

2V

4V

108 dB

113 dB

20 Hz - 20 kHz (-0.5 dB)

0.001%

Wolfson  WM8740  (24 bits / 192 kHz capable)

Linear power supply with high performance R-core transformer

Full function remote control

Natural aluminium

430 mm x 374 mm x 118 mm    w x d x h

5.2 kg

With this in mind we have produced an information sheet which we would encourage you to read. Please follow the link below.

The MP100 has an abundance of features and can become the centre of your entertainment system in no time at all. In November 2013 we added Bluetooth making access to your music even easier.
