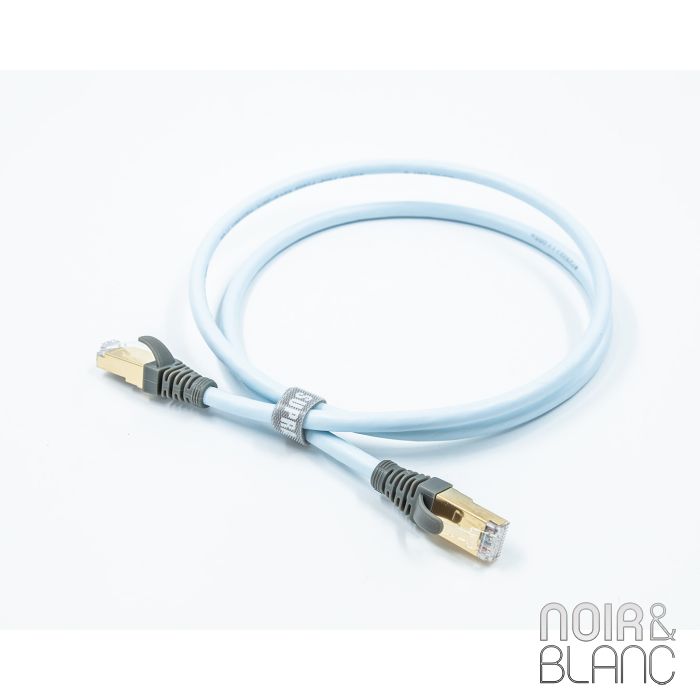

Supra Cables CAT8

Tarif :
41 €

* Champs obligatoires

Supra Cables CAT8

Ce que Noir et blanc en dit ...

Supra Cat 8 is once more one step ahead by providing a future proof cable, e.g. 40GBASE-T over one singel cable! It is used beneficially in TCP/IP and UDP applications where bit-correct, jitter-free data transmissions is critical, e.g. 4K and 8K video streaming, high quality music streaming (e.g. 32 bits @ < 700 kHz for some downloadable music and in-studio applications), gaming and data centers, and in-building installations such as hotels, conference facilities, among others.

Further it is available pre-connected as patch cables in a number of standard lengths, refer to available variant meny, pre-connected with Supra RJ45 Connectors, a fully shielded connector supporting the astonishing performance of the cable also under tough service conditions and it is possible to connect on-site.

HDBaseT is transmitted over 6A up to 100 m (328 ft) long, with 8P8C modular connectors of the type commonly used for ethernet local area network connections. From Cat 6A to Cat 8 the step is four times the bandwidth. Supra Cat 8 allows for 2,000 MHz(!) an incredible transfer speed providing for quality enhancing massive headroom.

Installation and patch cable for all networks conforming to ISO/IEC 11801 and EN 50173 (2nd issue), for computer centrals according to ISO/IEC 24764, EN 50173-5 and also TR 11801-99-1. Ideal for all applications from D up to FA and Class II, Multimedia (TV, video, data, voice) >40 GbE enligt IEEE 802.3 bq (draft), cabel sharing, VoIP and PoE/PoE+.

Donnez votre avis :
4.5461 2115
Disponibilité : De stock

Garantie : 2 ans

Marque : Supra Cables

Supra Cables CAT8

Mechanical Specifications

Standard Cat 8 Patch Ethernet Cord
Connectors Supra RJ45 Male ► Supra RJ45 Male
Signal direction Bi-directional
Application examples  Ethernet  40GBASE-T



Cable design

Cable 4 pair, Cat 8 S/STP PIMF
Lead area 0.23 / 26 mm 2  / AWG
Number of strands 7 pieces
Lead material Bright drawn oxygen-free 5N copper
Insulation Air-injected, low capacitance PE
Inner shield Aluminium foil
Outer shield Tin plated, oxygen-free 5N copper braid
Jacket PE (FRHF)
Outer dimension Ø 6 mm
Flame retardancy Yes


Electrical performance

Resistance 145 Ohm / km
Capacitance 43 pF / m
Bandwidth 2,000  MHz
Skew @ 100 MHz 5 / 100 ns / m
Impedance 100 Ohm
Velocity factor 0.8x C (speed of light)
