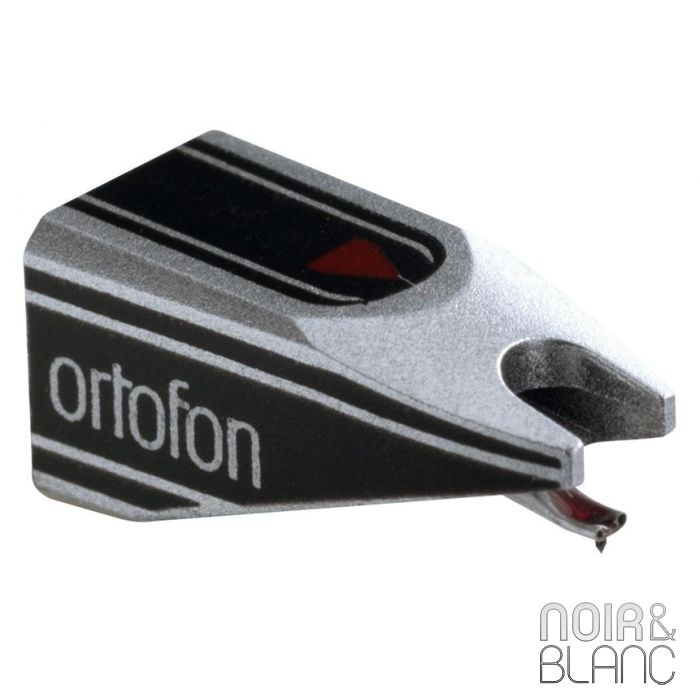

ORTOFON STYLUS S-120
Ce produit n'est plus disponible
Une question avant de finaliser votre commande ?
Notre équipe d'experts vous réponds par email ou au +32 538 44 51 (mar-sam, 10h-12h30 et 14h-18h30)
Fiche technique
Informations techniques complémentaires
Output voltage at 1000Hz, 5cm/sec. - 10 mV
Channel balance at 1kHz - 1,5 dB
Channel separation at 1kHz - 20 dB
Channel separation at 15 kHz - 15 dB
Frequency range at -3dB - 20-18.000 Hz
Frequency response - 20-18.000 Hz +3/-2 dB
Tracking ability at 315 Hz at recommmende tracking force - 120 μm
Compliance, dynamic lateral - 11 μm/m N
Stylus type - Spherical
Stylus tip radius - R 18 μm
Tracking force range - 1,5-10,0 g (15-100 mN)
Tracking force recommended - 4,0 g (40 mN)
Internal impedance, DC resistance - 1680 Ohm
Internal inductance - 920 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-600 pF
Concorde / OM cartridge weight - 18,5 / 5,0 g
Compatible with cartridges - S-120
L'avis de Noir & Blanc
S-120 Replacement stylus
Exceptional tracking ability of 120 μm!
S-120 cartridge's breakthrough technology has been designed to provide maximum freedom for DJ performance. An innovative technology, called asymmetric suspension, takes the cartridge performance to the next level.
• Its superior tracking force ensures the S-120 stays in the groove even under extreme live performance conditions.
• In addition, its design achieves an unprecedentedly low level of record wear, which helps protect your valuable vinyl.
• On top of this, the S-120 is capable of providing a level of sound quality never thought possible from a modern DJ cartridge.
