Fiche technique
Informations techniques complémentaires
Frequency range - 20-25.000 Hz
Frequency response - 20-20.000 Hz + 2 / - 1 dB
Tracking ability at 315Hz at recommended tracking force *) - 80 µm
Compliance, dynamic, lateral - 20 µm/mN
Stylus type - Nude Elliptical
Stylus tip radius - r/R 8/18 µm
*) Typical value
Equivalent stylus tip mass - 0,5 mg
Tracking force range - 1,6-2,0 g (16-20 mN)
Tracking force, recommended - 1,8 g (18 mN)
Tracking angle - 20°
Stylus colour - Blue
L'avis de Noir & Blanc

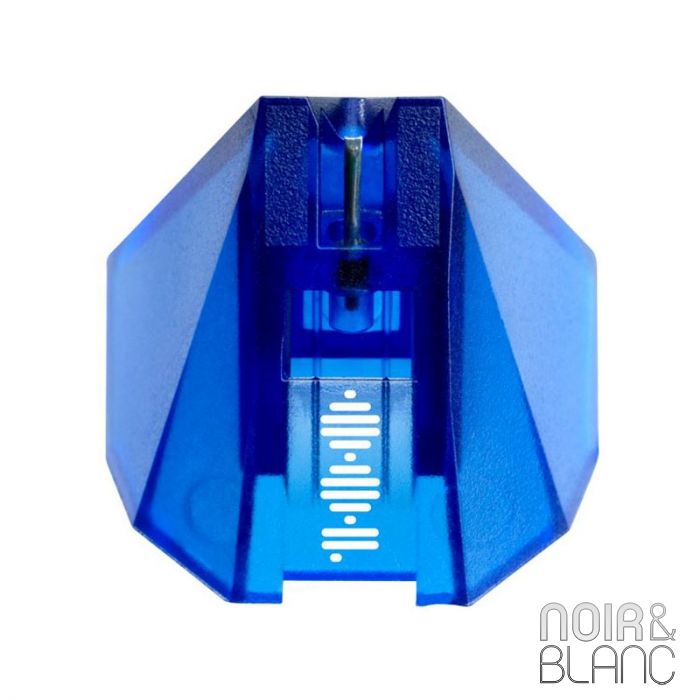

Ortofon fête ses 100 ans en 2018, l'occasion de proposer une série spéciale : le Stylus 2M Blue Anniversary.
Il est au point de vue audio identique au modèle 2M Blue, la différence se situant au niveau de la finition avec un logo anniversaire d'Ortofon ainsi qu'un prix spécial de 140€.
Physically 2M styli will fit on alternative 2M cartridges bodies, but 2M Series cartridges’ engines, coils and magnets configurations are not quite identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78.
2M Silver phono cartridge is an OEM (Original Equipment Manufacturer) model that takes most of the characteristics of the 2M Red.
2M Silver's special feature is silver plated copper coils, the same coil wire material as in the 2M Bronze and Black models, with a reduced number of windings.
Recommended for following cartridges - 2M Blue, interchangeable with 2M Red
