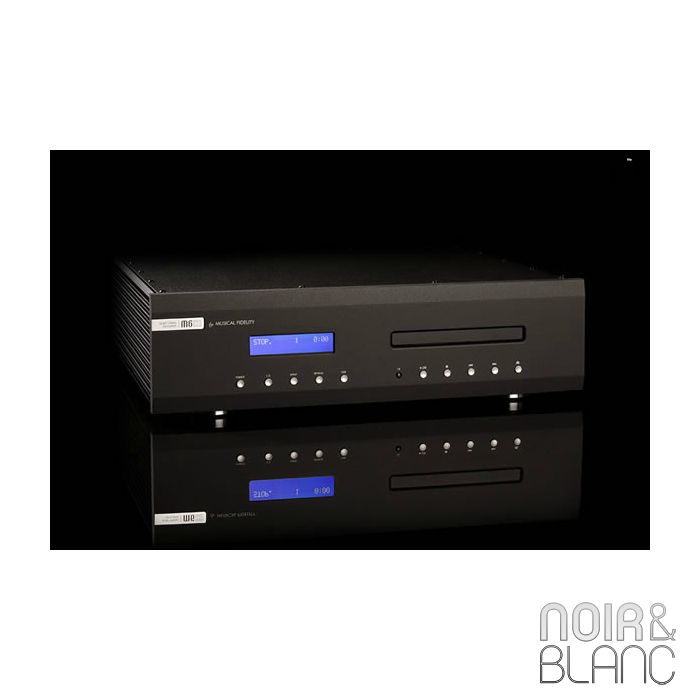

Musical Fidelity M6 CD-USB

Output Output impedance 50 ohms balanced or single ended Output, digital 0dB level XLR output - 4.4V r.m.s. balanced nominal RCA output - 2.2V r.m.s. single ended nominal DAC (balanced and single-ended outputs) DAC circuit 24 bit Delta-Sigma (bit stream) dual differential 8x over-sampling Total correlated jitter <135 picoseconds peak to peak Linearity <0.1dB down to -96dB Frequency response 10Hz to 20 kHz -0.2dB max. Channel separation >105dB 20 Hz to 20 kHz Signal-to-noise ratio >117dB “a”- wtd. Total harmonic distortion <0.003% 10Hz to 20 kHz Connections Line level outputs 1 pair line level RCA connectors, left and right outputs 1 pair line level XLR connectors, left and right outputs Digital outputs 1 RCA coaxial connector SPDIF 1 TOSLINK optical connector Digital inputs 1 RCA coaxial connector SPDIF 1 TOSLINK optical connector USB input USB type “B” (square) socket Power requirement Mains voltages 115/230VAC 50/60Hz (factory pre-set) 100VAC 50/60Hz (alternative) Consumption 20 Watts maximum Weight Unit only, unboxed 11.2 kg (24⅔ lbs) In shipping carton 15.5 kg (34 lbs) Dimensions Wide 440 mm (17⅓”) High, including feet 125 mm (5”) Deep (front to back) including terminals 385 mm (15⅛”) Standard accessories IEC type mains lead (10-Amp type) M6 remote control Batteries, LR03 or AAA, manganese alkaline type - 2 off
