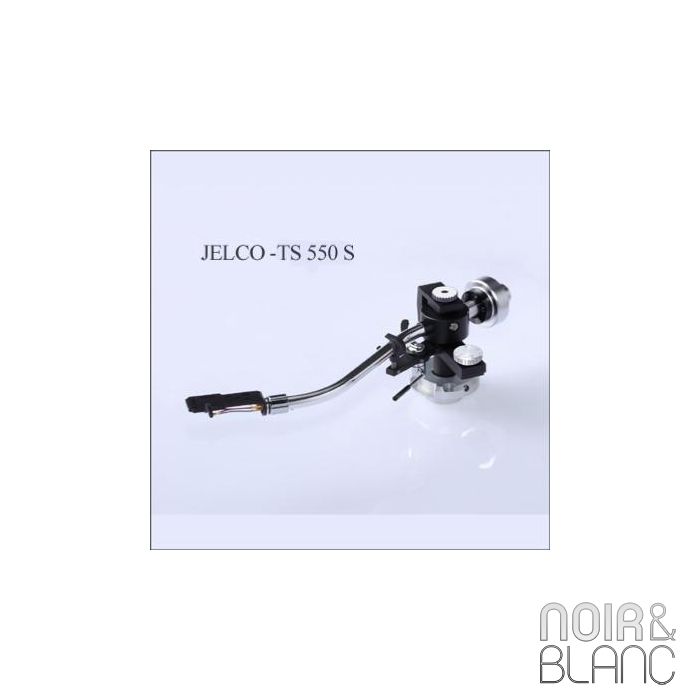

JELCO TS-550S/L
Ce produit n'est plus disponible

Une question avant de finaliser votre commande ?
Notre équipe d'experts vous réponds par email ou au +32 538 44 51 (mar-sam, 10h-12h30 et 14h-18h30)
Fiche technique
Informations techniques complémentaires
| Model | TS-550L | TS-550S |
| Color | color | black + chrome |
| Effective length | Effective length | 303mm |
| (from the tonearm pivot to stylus point) | (from the tonearm pivot to stylus point) | |
| Distance of the tonearm pivot to spindle | Distance of the tonearm pivot to spindle | 290mm |
| Overhang (spindle to stylus point) | Overhang (spindle to stylus point) | 13mm |
| Offset angle | Offset angle | 17.7 ° |
| Tracking error angle | Tracking error angle | + 1.45 ° - 0.85 ° |
| Holizontal sensitivity (first action inner wire free) | Horizontal sensitivity (first action inner wire free) | 30mg |
| Vertical sensitivity (first action inner wire free | Vertical sensitivity (first action inner wire free) | 30mg |
| Suitable cartridge weight INCLUDING HEADSHELL | Suitable cartridge weight range INCLUDING HEADSHELL | 17 - 34gr |
| Knife edge bearing system / Dynamic balance system | Oil damping | YES |
| Range of height adjustment-distance - arm base bottom to center of arm pipe | Range of height adjustment-distance | 38 - 60mm |
L'avis de Noir & Blanc
9 or 12 inch oil damp static balance type with headshell
Simple mechanism is excellent for sound reproduction
the tonearm geometry allows for a Baerwald amendments which is IEC recommended
new type of counterweight equipped to handle 17 to 34 gram cartridge with headshell installed
