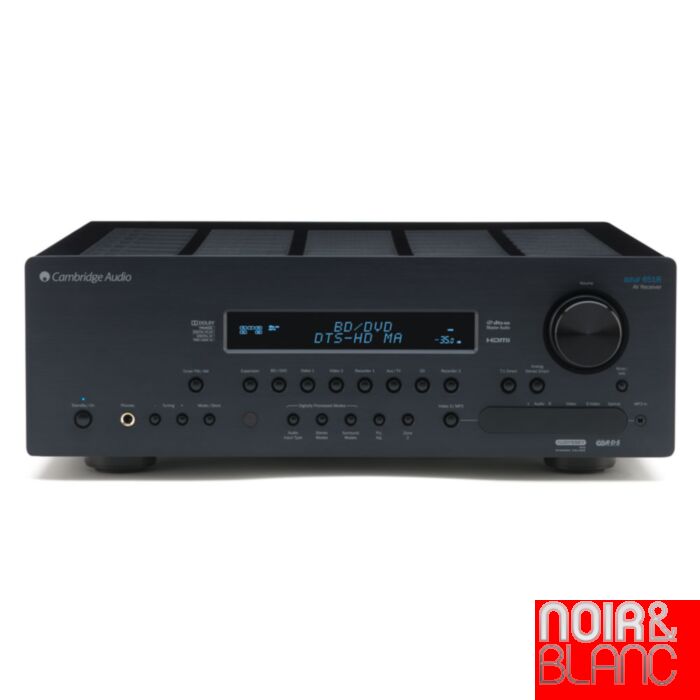

Cambridge Audio 651R

Power output

175W RMS per channel, into 6 ohms (two channels driven)

140W RMS per channel, into 8 ohms (two channels driven)

100W RMS per channel, into 8 ohms (all 7 channels driven)

HDMI

HDMI 1.4a, EIA/CEA - 861D, HDCP 1.1, ARC and 3D-TV/deep colour pass through supported

Architecture

Cirrus Logic CS43122 24-bit 192kHz capable DAC for Front Left & Right

Cirrus Logic CS52526 24-bit 192kHz capable CODEC for surround channels + 24-bit 2 channel

A/D Conversion

Two TI Aureus DA788 32-bit DSPs

Anchor Bay ABT2010 scaler

Audio Inputs

8 x Line Level Analogue

Tuner (FM/AM)

7.1 multi-channel analogue Input

5 x digital co-axial, 5 x digital optical

Video Inputs

4 x HDMI

3 x Component Video

4 x Composite

4 x S-Video

Main Audio

Outputs 7 x Amplified Speaker Outputs, 7.2 Preamp outputs

Main Video Output

2 x HDMI (1.4a), ARC through HDMI A

Zone 2 Outputs

Surround back channels, 2.1 preamp audio outputs, component, S-Video and composite video outputs

Recording Audio Outputs

2 x Line Level Analogue

2 x Digital Co-Axial, 2 Digital Optical

Other connections

1 1/4" / 6.35mm Headphone Output (32 To 600 ohms recommended)

3 x IR emitter outputs, 1 IR Receiver Input (un-modulated), 1 IR Emitter Input (modulated),1 x zone 2

IR emitter input, 1 control bus input/output

2 x 12V trigger outputs

1 RS232C, 1 IEC type mains inlet

Max. power consumption: 1400W

Standby power consumption: <0.5W

Dimensions (W x H x D): 430 x 150 x 420mm (16.9 x 5.9 x 16.5’’)

Weight: 17.4Kg (38.3lbs)
