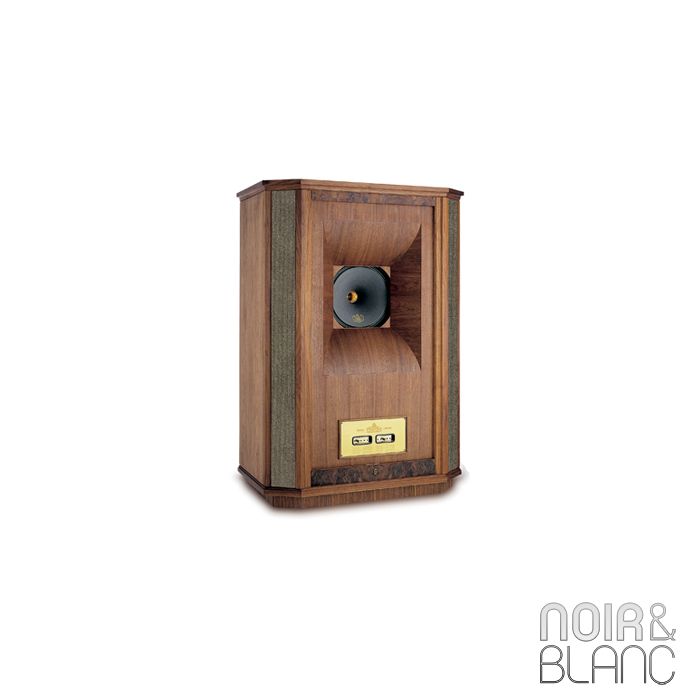

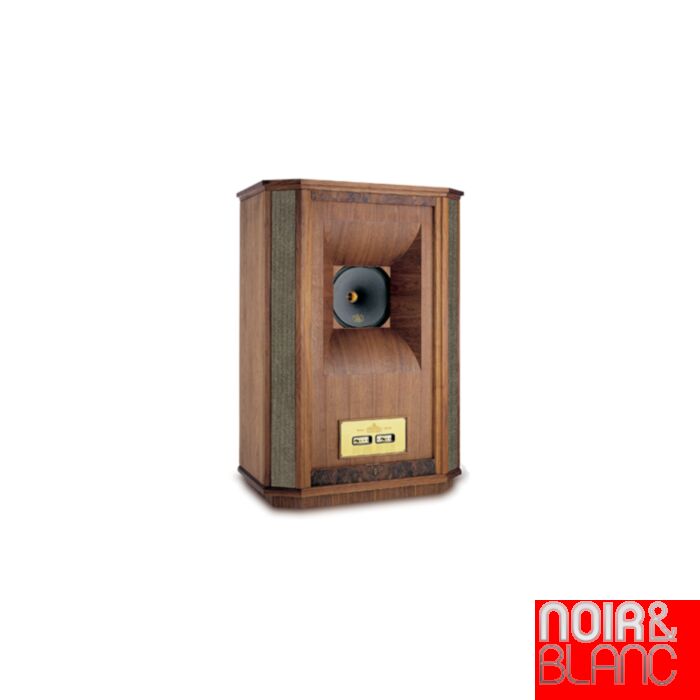

Tannoy Westminster Royal SE
Ce produit n'est plus disponible
Une question avant de finaliser votre commande ?
Notre équipe d'experts vous réponds par email ou au +32 2 538 44 51 (mar-sam, 10h-12h30 et 14h-18h30)
Fiche technique
Informations techniques complémentaires
PERFORMANCE
Recommended amplifier power 50 - 225 Watts
Continuous power handling 135 Watts RMS
Frequency response 18Hz - 22kHz -6dB
Sensitivity 99dB (2.83 Volts @ 1 metre)
Nominal impedance 8 Ohms
DRIVE UNITS
Dual Concentric™ high frequency 51mm (2.00") with aluminium alloy dome, Alnico magnet system with Pepperpot Waveguide™
Dual Concentric™ low frequency 380mm (15.00") treated paper pulp cone with HE twin roll fabric surround. 52mm (2.00") round wire wound voice coil
Dispersion 90 degrees conical
CROSSOVER
Frequency 200Hz acoustical,1kHz electrical
Type Bi-wired, hard wired passive, low loss time compensated 2nd order LF, 2nd order compensated HF.
Adjustment +/- 3dB over 1kHz to 22kHz shelving,
+2dB to -6dB per octave over 5kHz to
22kHz slope
CONSTRUCTION
Enclosure type Compound horn
Volume 530L (18.7 cu.ft)
Dimensions 1395 x 980 x 560mm
(55.00 x 38.50 x 22.00”)
Weight 138kg (304 lbs)
Finish Walnut veneer with solid walnut edging and trim detail
L'avis de Noir & Blanc
The Westminster Royal SE, the crowning achievement of the Prestige range, combines hand built traditional compound horn loaded enclosure with the latest technological innovation in acoustical engineering.
The 15” Dual Concentric™ drive unit incorporates an Alnico magnet system with an integral computer designed and manufactured reverse throat high frequency PepperPot
WaveGuide™ for exceptional transient response and increased sensitivity. A hard edge’ cone surround and unique chassis earthing system deliver tight, fast and controlled bass with fluid and transparent midrange and high frequency performance of great purity.
The magnificent 530 litre cabinet with its complex horn loading system delivers greatly increased efficiency with a wave front area approaching that from real instruments. Effortlessly capable of resolving truly low frequencies and the reproduction of the dramatic dynamic range of musical instruments with stunning realism, this is a true Tannoy classic.
